Diagram Information and Instructions|Page 6470 > < Diagram Information and Instructions|Page 6468

M35 V6-3.5L (VQ35HR) (2009)

Page 5
background image

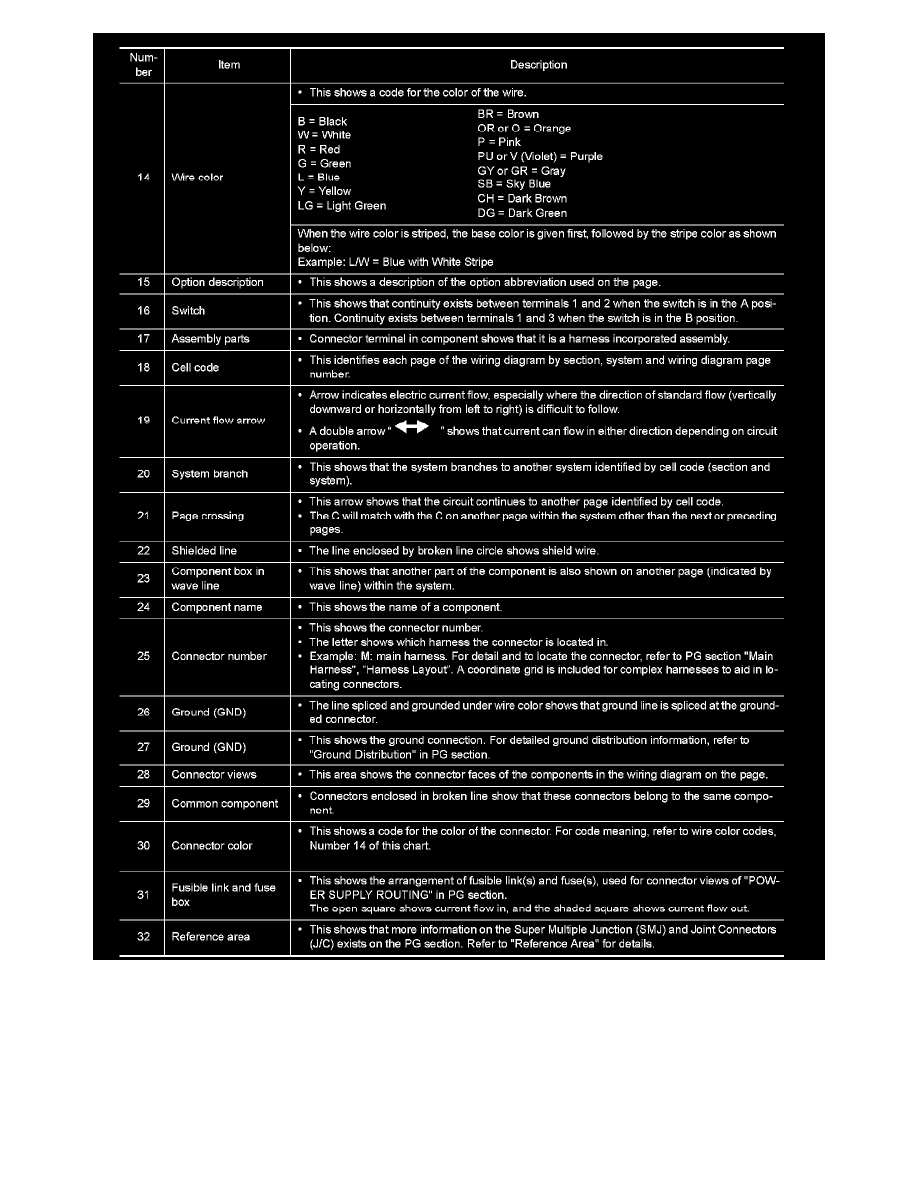

Harness Indication
-

Letter designations next to test meter probe indicate harness (connector) wire color.

-

Connector numbers in a single circle M33 indicate harness connectors.
