Infiniti Workshop Service and Repair Manuals > M45 V8-4.5L (VK45DE) (2006) > Powertrain Management | Computers and Control Systems | Information Bus | Component Information | Testing and Inspection | Flow of Diagnosis | Page 4258

Information Bus|Flow of Diagnosis|Page 4259 > < Information Bus|Flow of Diagnosis|Page 4257

Page 53

background image

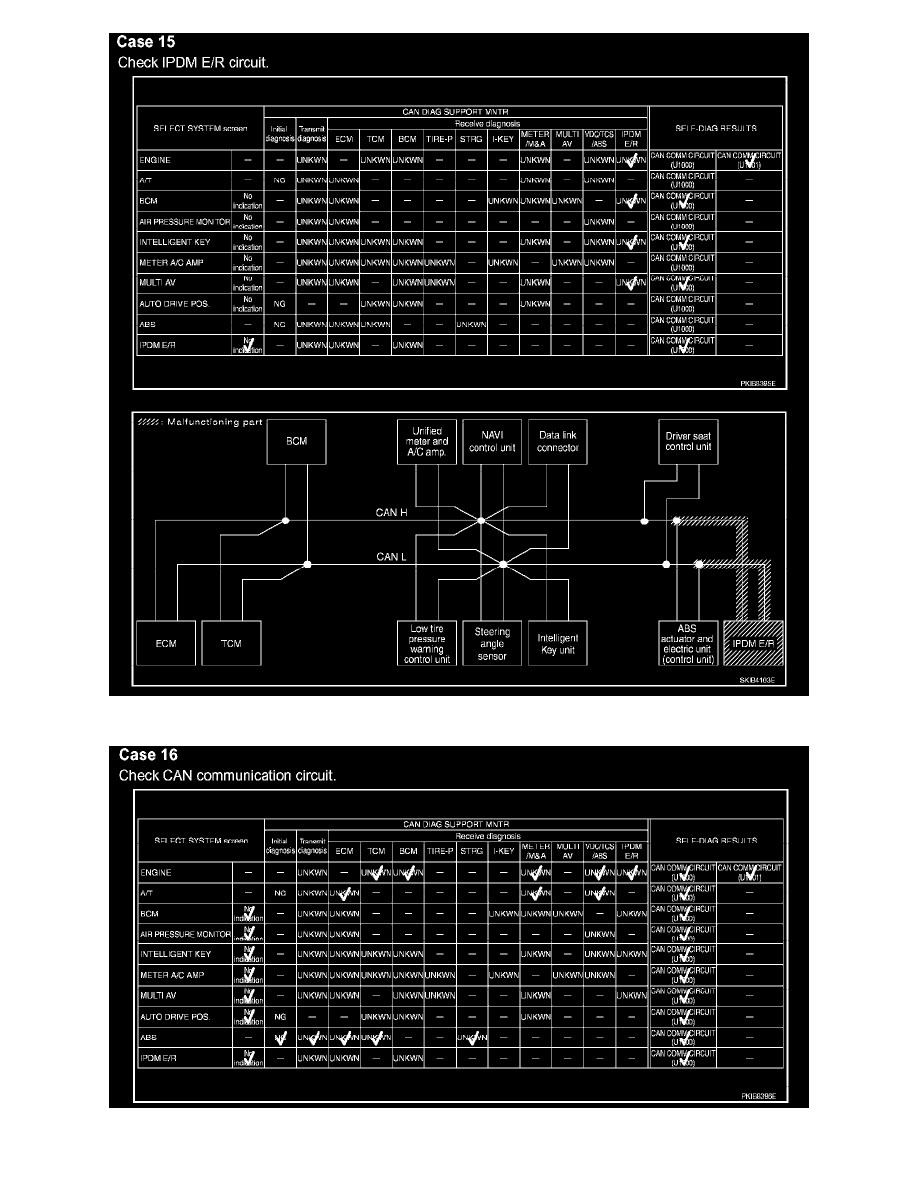

Case 15

Case 16

Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Testing and Inspection / Flow of Diagnosis
Page 4258

Information Bus|Flow of Diagnosis|Page 4259 > < Information Bus|Flow of Diagnosis|Page 4257
