Page 110

background image

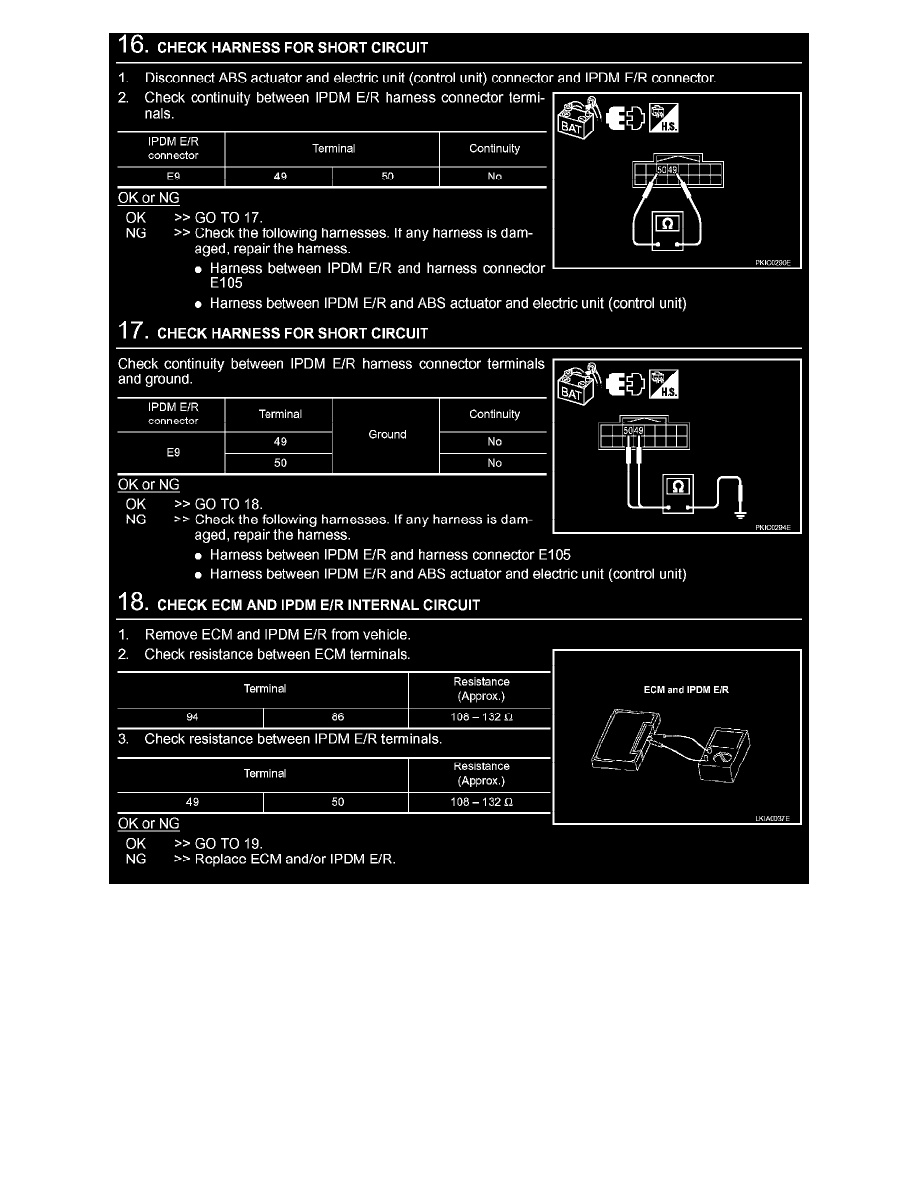

CAN Communication Circuit Inspection (Steps 16 - 18)

Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Testing and Inspection / Flow of Diagnosis
Page 4315
