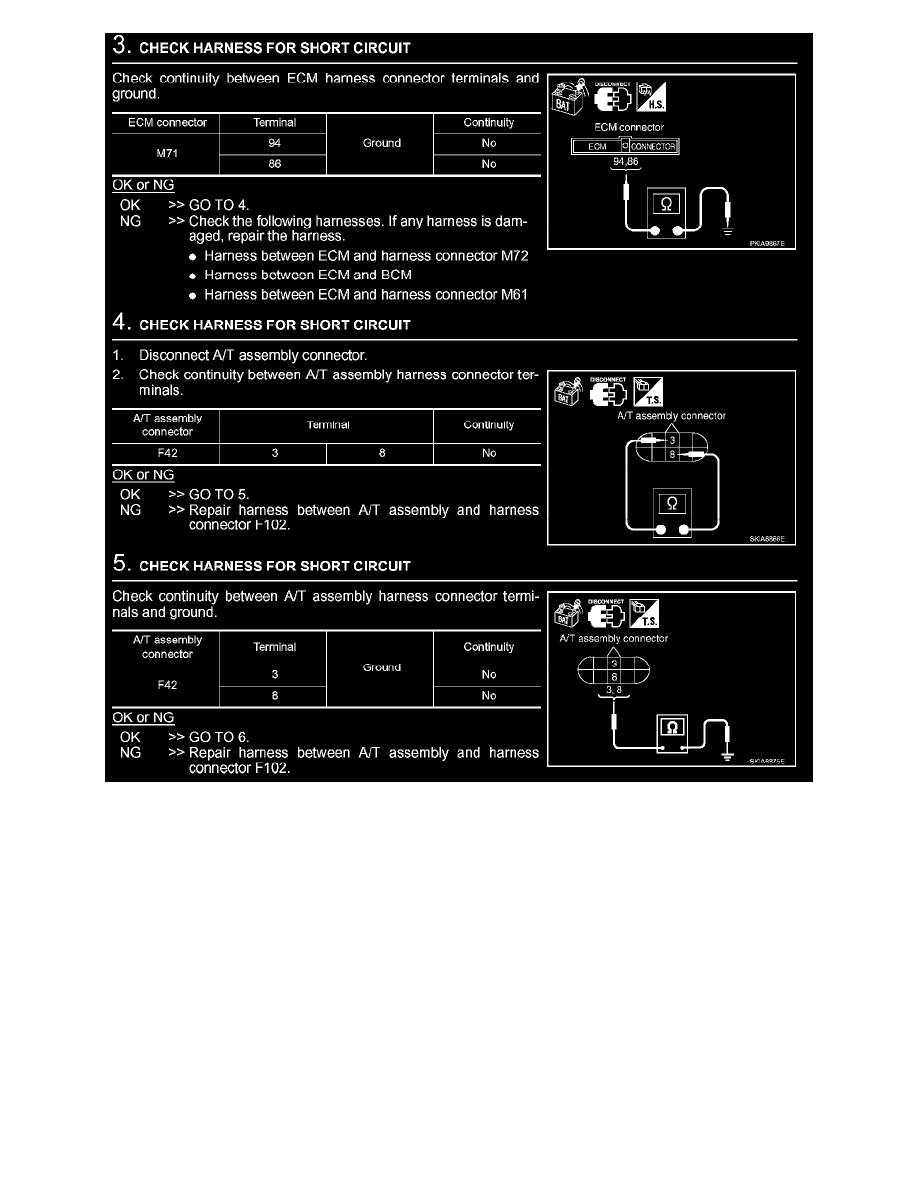

CAN Communication Circuit Inspection (Steps 3 - 5)

Powertrain Management
Computers and Control Systems
Information Bus / Component Information
Testing and Inspection / Flow of Diagnosis
Page 4520
