Information Bus|Flow of Diagnosis|Page 4610 > < Information Bus|Flow of Diagnosis|Page 4608

M45 V8-4.5L (VK45DE) (2006)

Page 404
background image

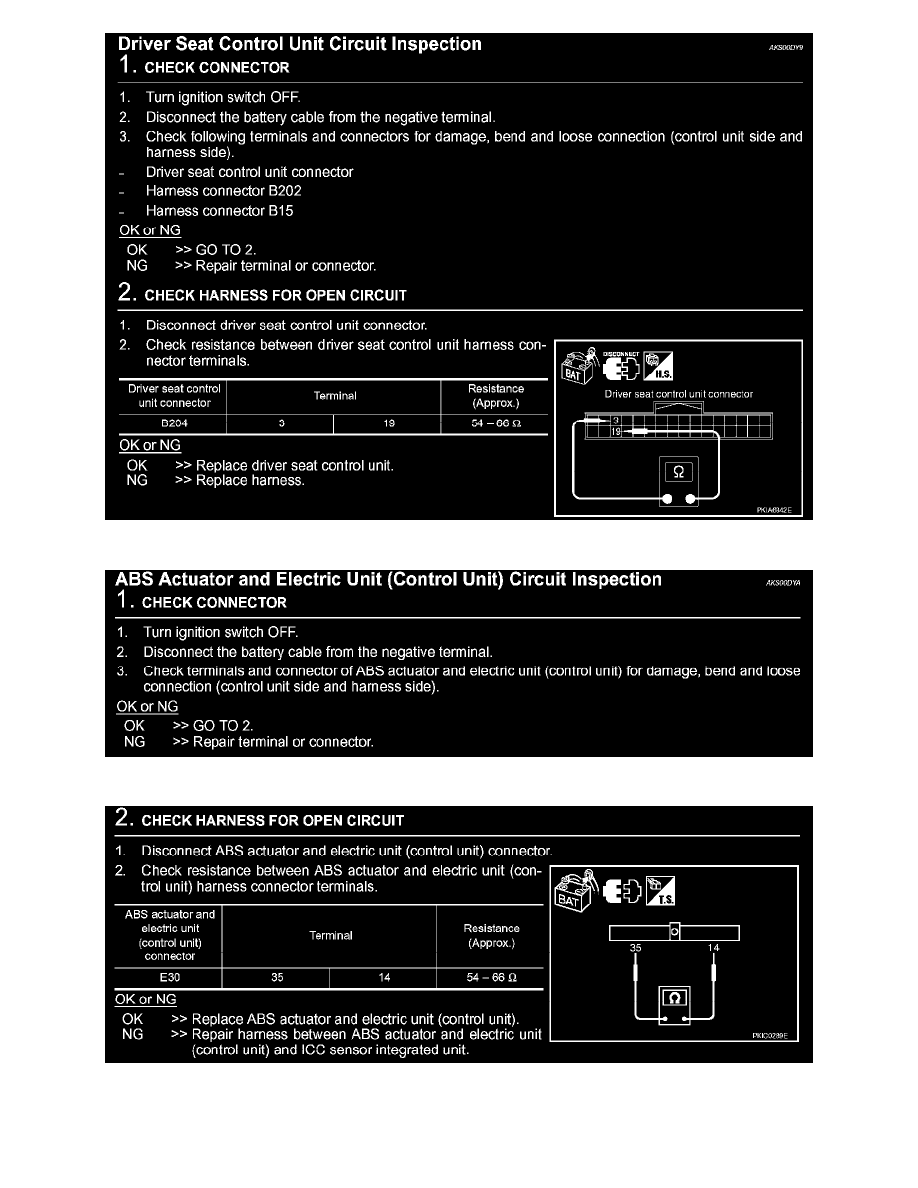

Driver Seat Control Unit Circuit Inspection

ABS Actuator And Electric Unit (Control Unit) Circuit Inspection (Step 1)

ABS Actuator And Electric Unit (Control Unit) Circuit Inspection (Step 2)
