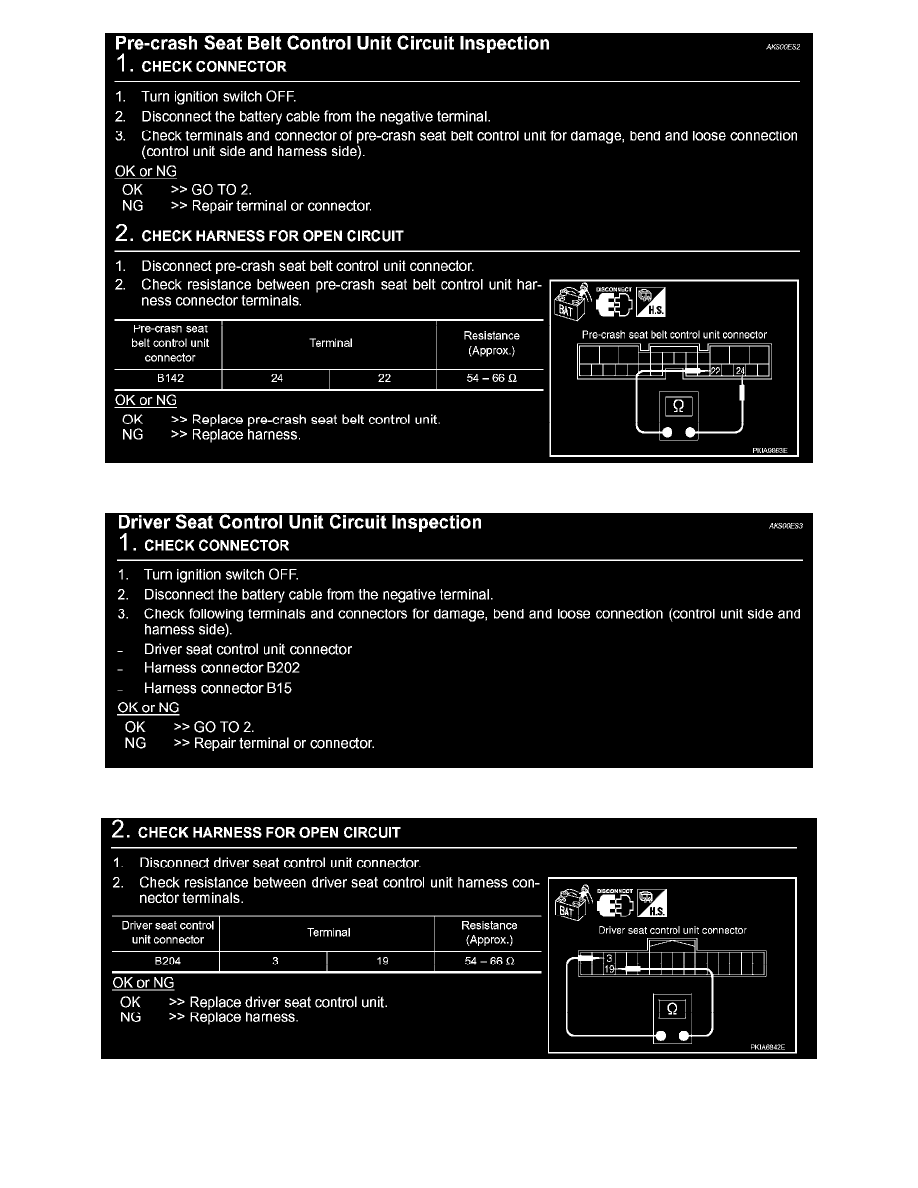

Pre-crash Seat Belt Control Unit Circuit Inspection

Driver Seat Control Unit Circuit Inspection (Step 1)

Driver Seat Control Unit Circuit Inspection (Step 2)
