Information Bus|Flow of Diagnosis|Page 4815 > < Information Bus|Flow of Diagnosis|Page 4813

M45 V8-4.5L (VK45DE) (2006)

Page 609
background image

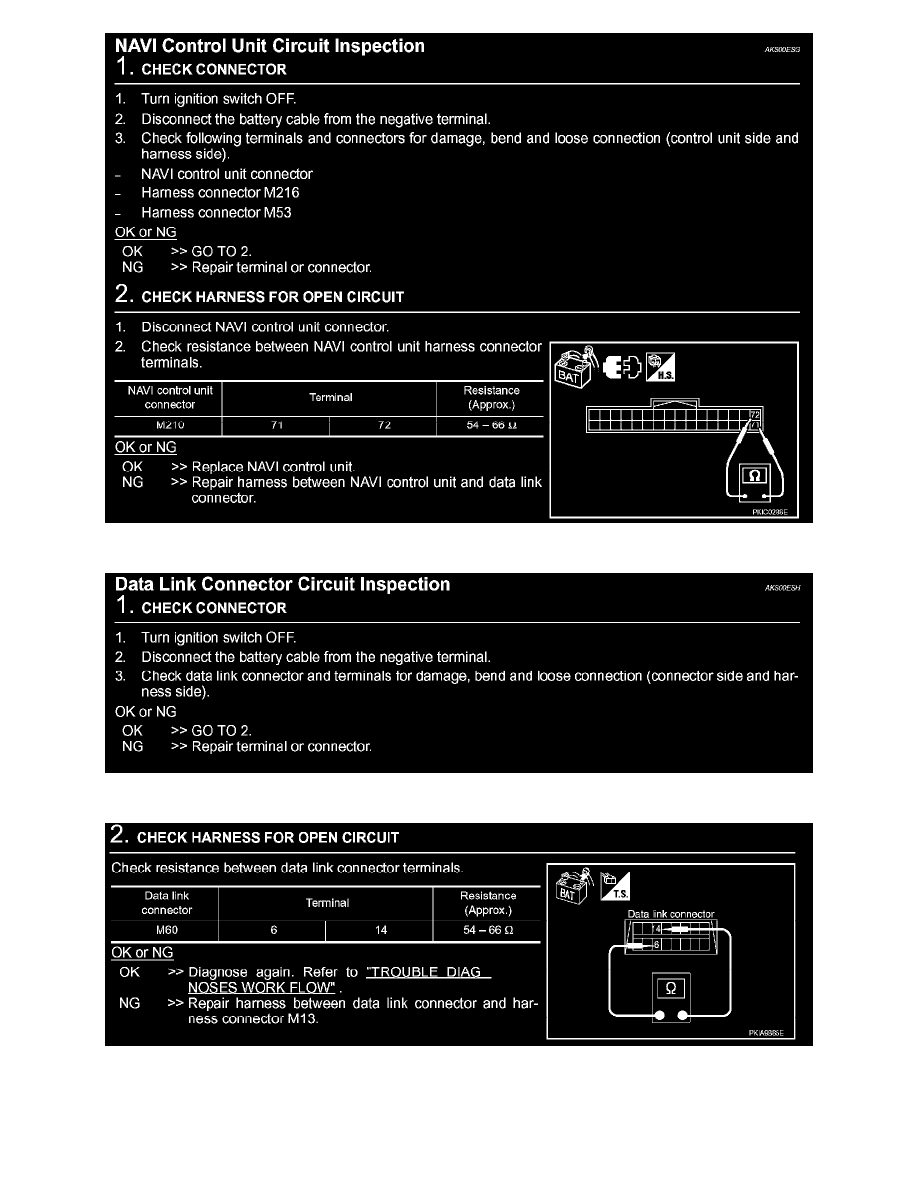

NAVI Control Unit Circuit Inspection

Data Link Connector Circuit Inspection (Step 1)

Data Link Connector Circuit Inspection (Step 2)
