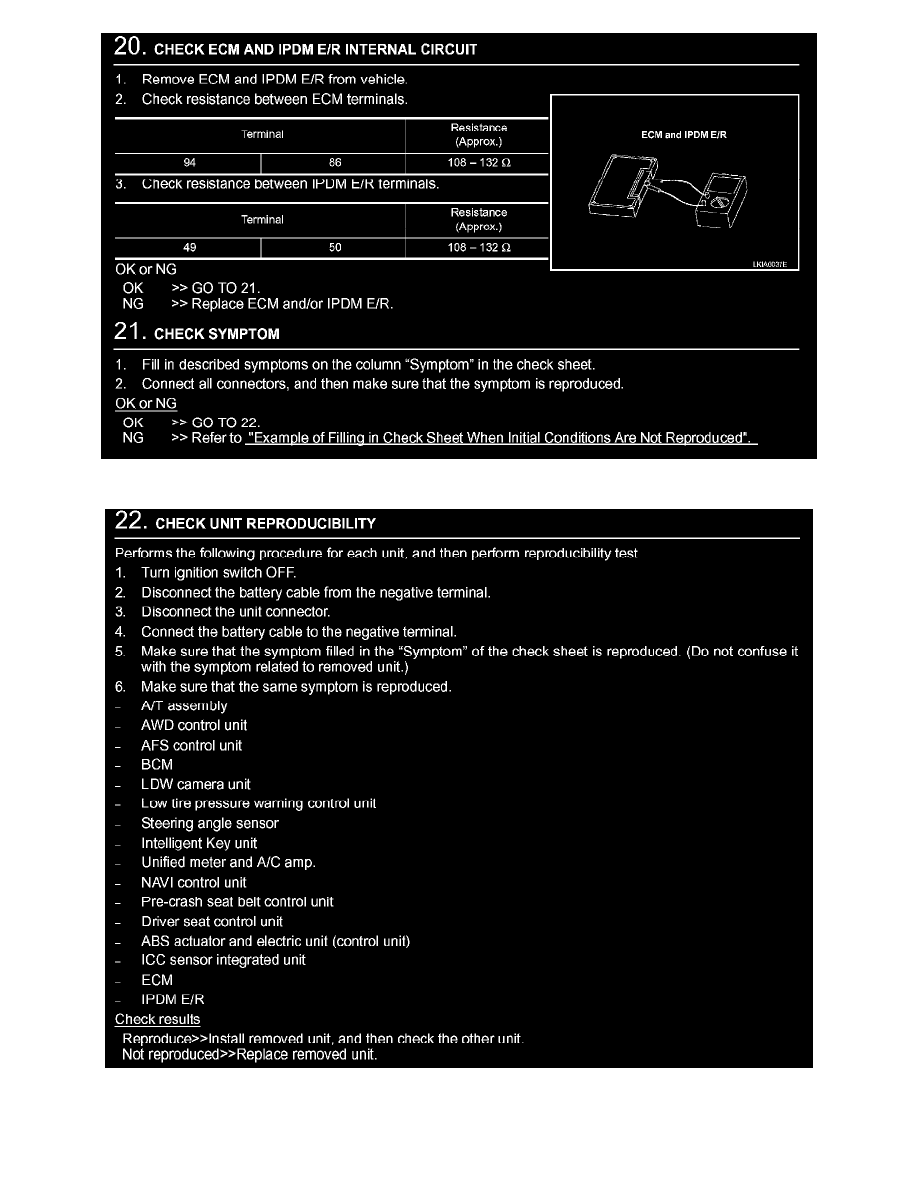

CAN Communication Circuit Inspection (Steps 20 - 21)

CAN Communication Circuit Inspection (Step 22)

IPDM E/R Ignition Relay Circuit Inspection
