S-Type (X200) V8-4.2L (2005)
/v8-4.2l/Page-1306001.png)
Rear Subframe: Service and Repair
Rear Subframe (64.25.01)

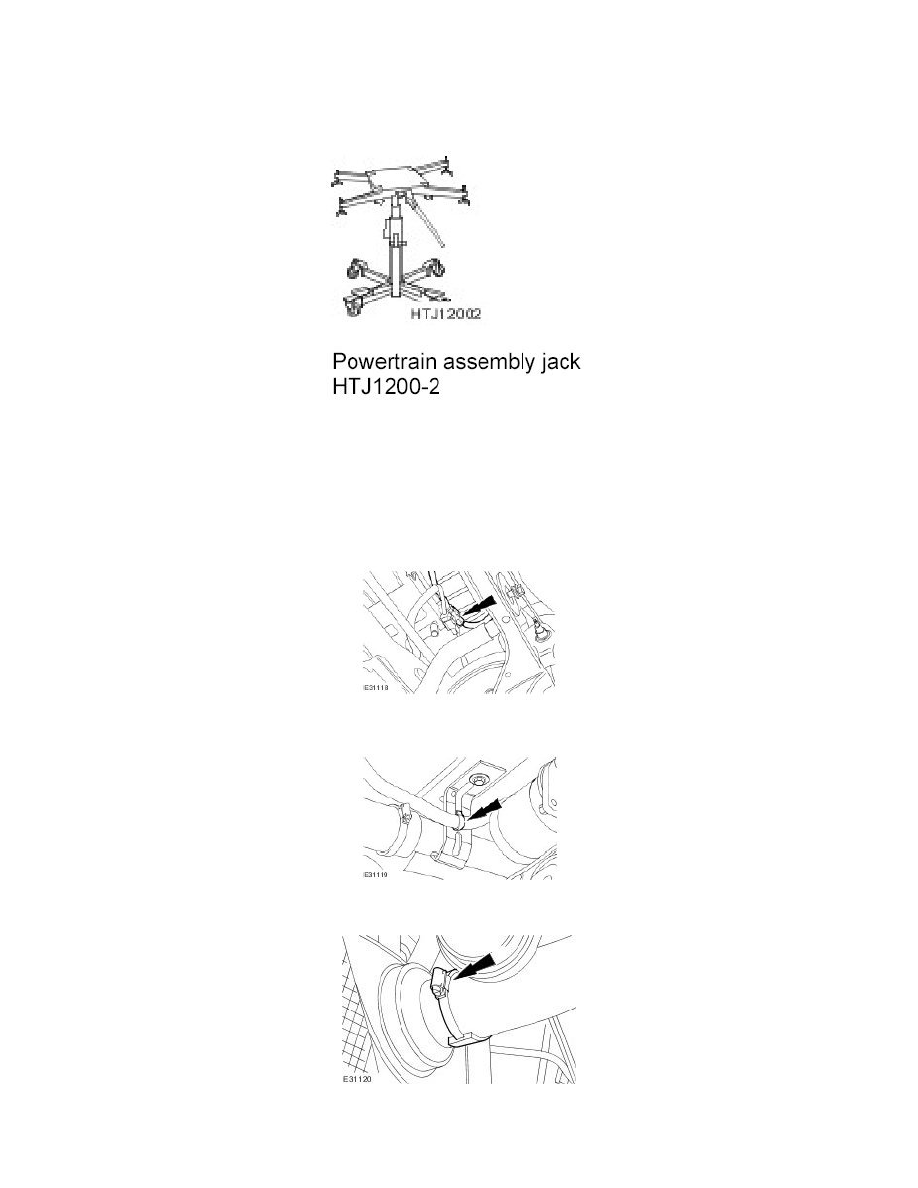

Special Service Tools
Removal
1. Drain the right-hand fuel tank saddle.
2. Remove the exhaust system.
3. Remove the axle assembly.
4. Remove both the upper arms.
5. Disconnect the electric parking brake electrical connector.
6. Detach the wiring harness.
7. Detach the fuel filler hose.
8. NOTE: Right-hand shown, left-hand similar.
Detach the shock absorber.
