Vanden Plas L6-4.2L (1982)
Wheel Hub: Service and Repair
Front Suspension

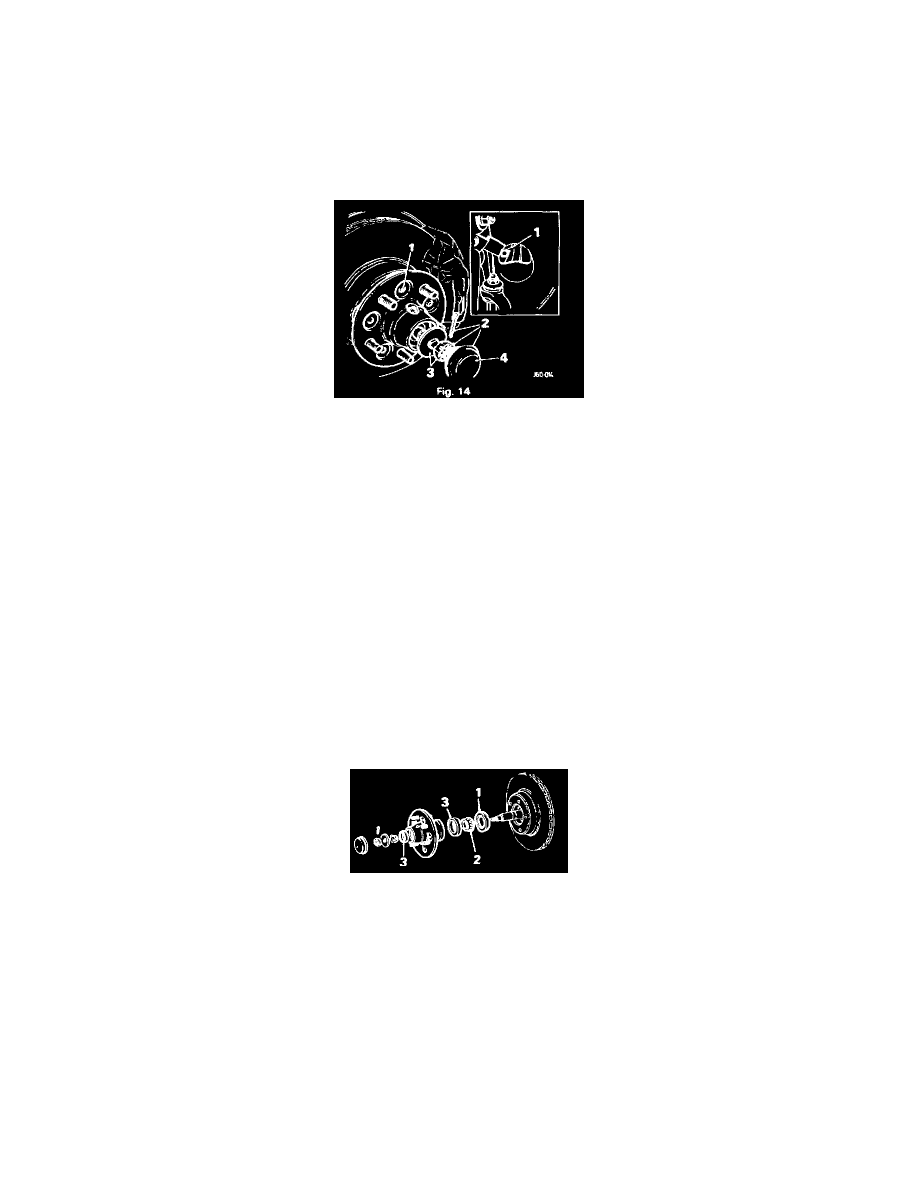

FRONT HUB ASSEMBLY
Remove and refit
Removing
-
Remove road wheel.
-
Through aperture in disc shield remove five bolts (1) and washers holding hub assembly to brake disc.
-
Remove hub grease cap. extract split pin. and remove nut and washer from stub axle (2); withdraw hub by hand.
Refitting
-
Pack hub with specified grease and refit to stub axle
-
Fit bearing. nut and washer (3) to stub axle and tighten nut to give end-float of 0.05 mm to 0.15 mm (0.002 in to 0.006 in).
NOTE:End-float is measured by fitting a dial test indicator with the button against the hub.
-
Fit new split pin
-
Refit grease cap (4).
-
Ensure that vent hole is clear.
-
Replace road wheel
FRONT HUB BEARINGS AND GREASE SEAL
Remove and refit
Removing
-
Remove front hub assembly as detailed above.
-
Extract grease seal (1).
-
Withdraw inner bearing race (2) if necessary
-
Drift bearing cups (3) from hub. grooves are provided in the abutment shoulders for this purpose
Refitting
-
Tap replacement cups into position. ensuring that they are seated square to abutments, if bearings have been removed.
-
Lubricate large bearing race and fit to cup.
-
Fit new grease seal. using suitable bell-piece and tapping seal squarely into position.
-
Replace front hub assembly and road wheel.
FRONT HUB STUB AXLE
Remove and refit
Service tool: Steering joint taper separator JD 24
