X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1403001.png)
Parking Assist Warning Indicator: Service and Repair
Removal

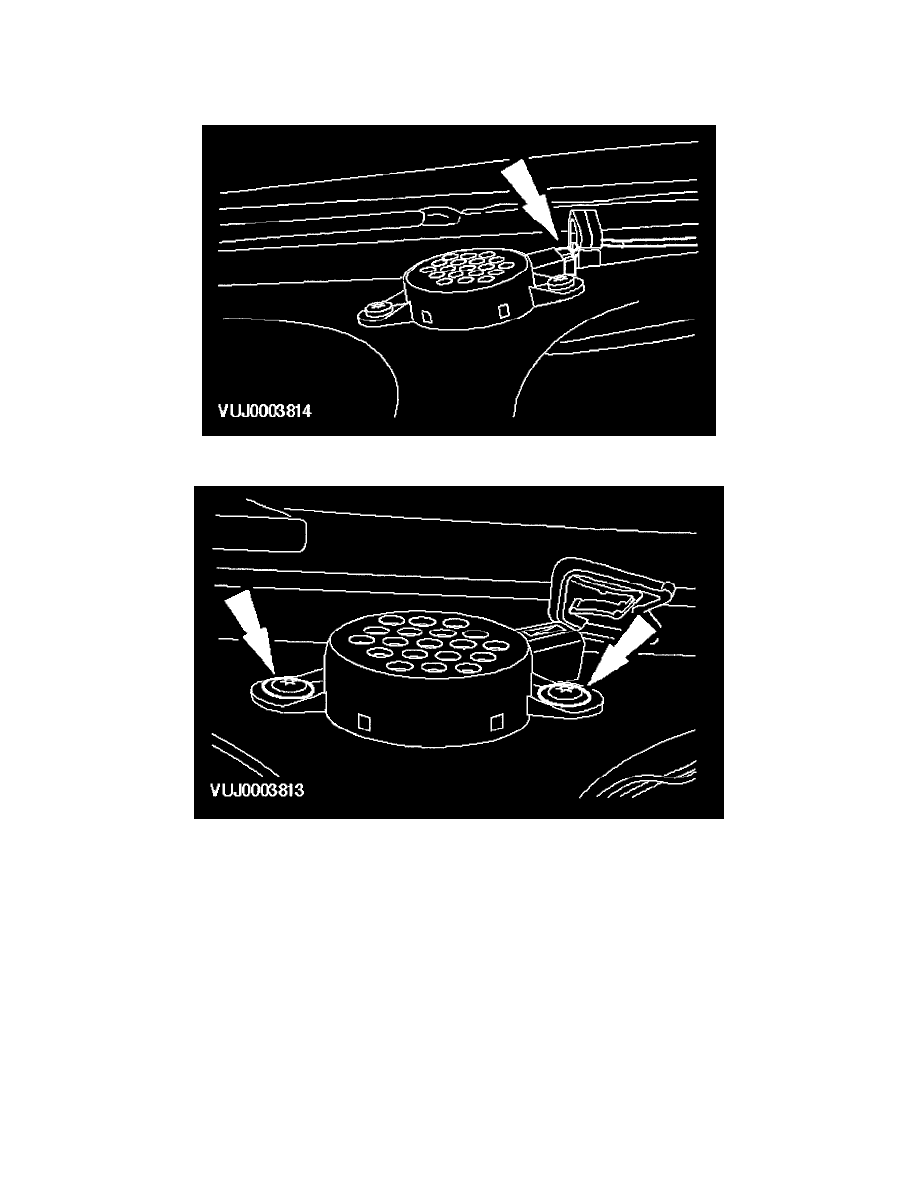

1. Remove the rear parcel shelf.
2. Disconnect the electrical connector.
3. Remove the speaker.
Remove and discard the rivets.
Installation
1. NOTE: Install new rivets.
To install, reverse the removal procedure.
