X-Type (X400) V6-3.0L (2002)

Page 3
background image

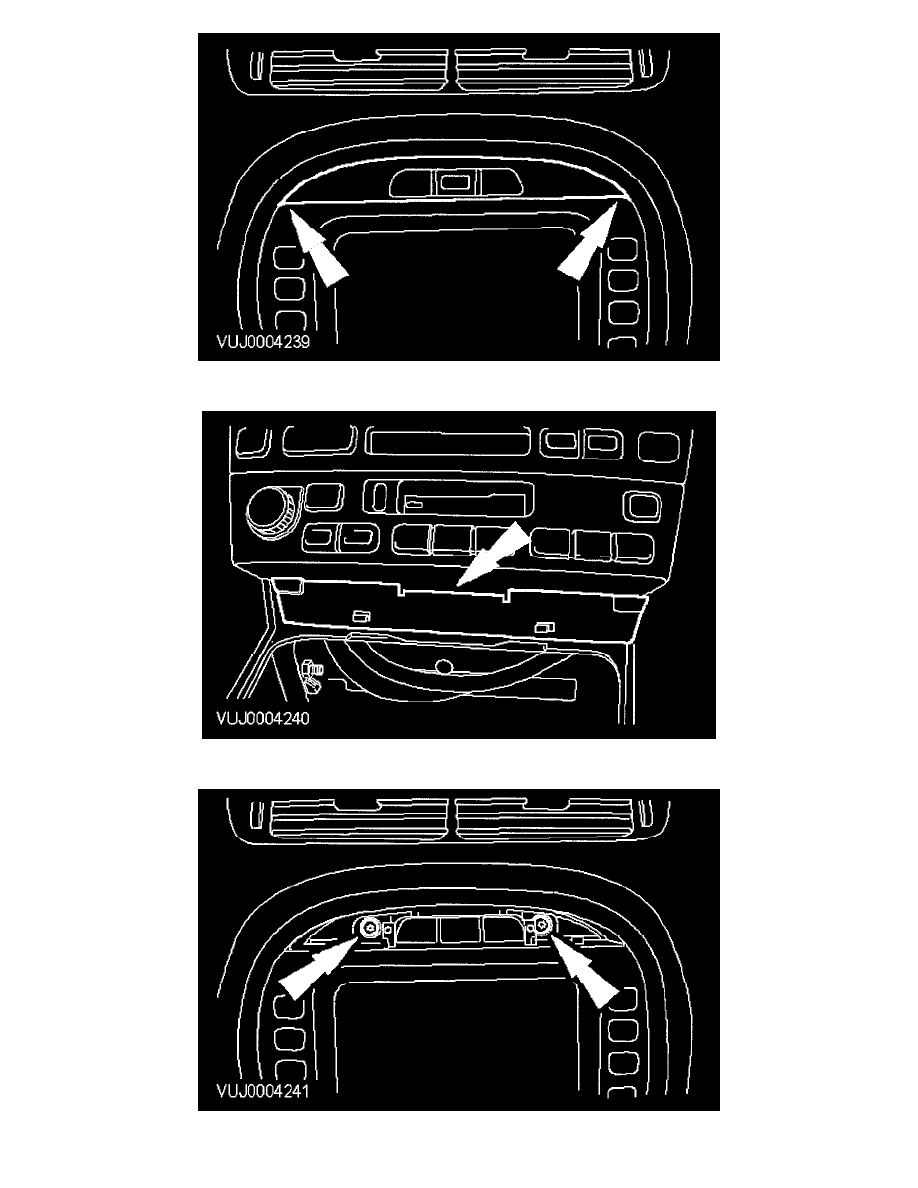

6. Remove the switch pack trim cover.

7. Remove the retaining screw cover plate.

8. Remove the display mounting bracket upper retaining screws.
