X-Type (X400) V6-3.0L (2002)

Page 1
background image

Speaker: Service and Repair
Speaker-Front Door

Removal

1. Remove the door trim panel.

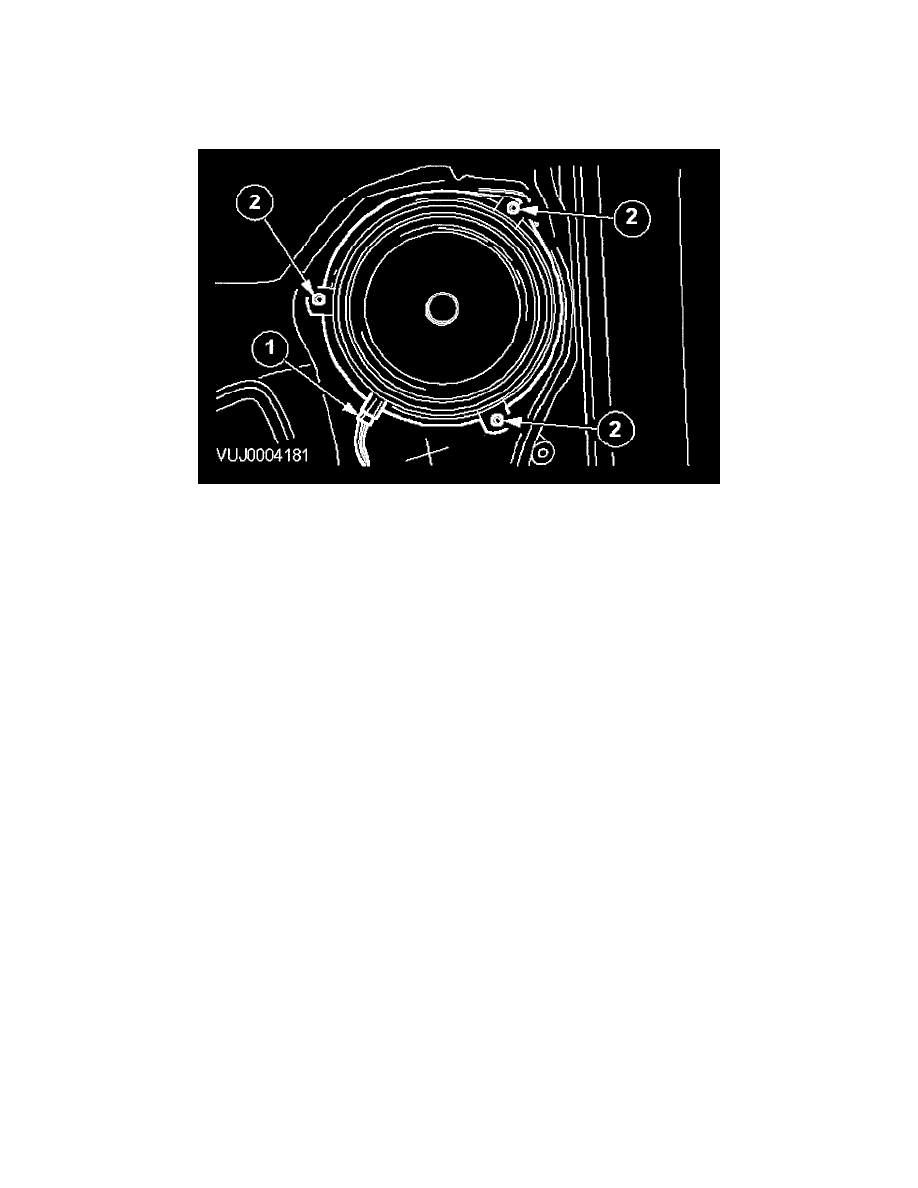

2. Remove the front speaker.

1. Disconnect the electrical connector.
2. Remove the front speaker.


Installation

1. To install, reverse the removal procedure.
