X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1492005.png)
^

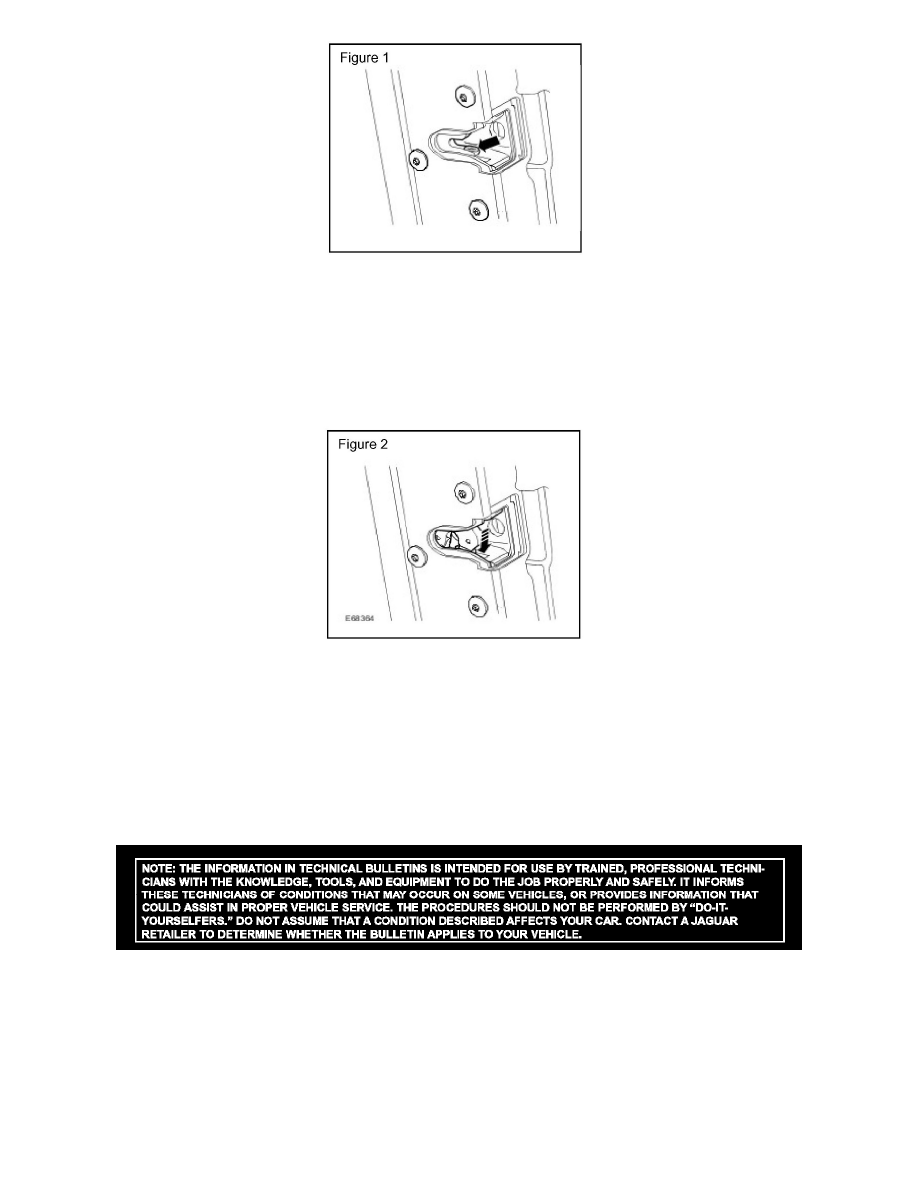

Apply a small amount of grease to the latch rotor.
(Approximate amount and location as arrowed in Figure 1)
^
Hold the exterior door handle open while rotating the latch rotor to the closed position.
^
Release the exterior door handle.
^
Rotate the latch rotor to ensure the grease contacts the latch pawl. (Arrowed in Figure 2)
^
Pull either exterior or interior door handle to open the latch.
^
Close and open the door to check operation.
^
Remove excess grease from the striker.
^
Verify that each door opens easily and without squeaking.
Disclaimer
Technical Service Bulletin # XT501-28
Date: 050501
Body - Exterior Door Handle Stiff or Inoperative
XT501-28
X-TYPE
DATE
03/05
