X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1543001.png)
Rear Door Panel: Service and Repair
Rear Door Trim Panel (76.34.04)

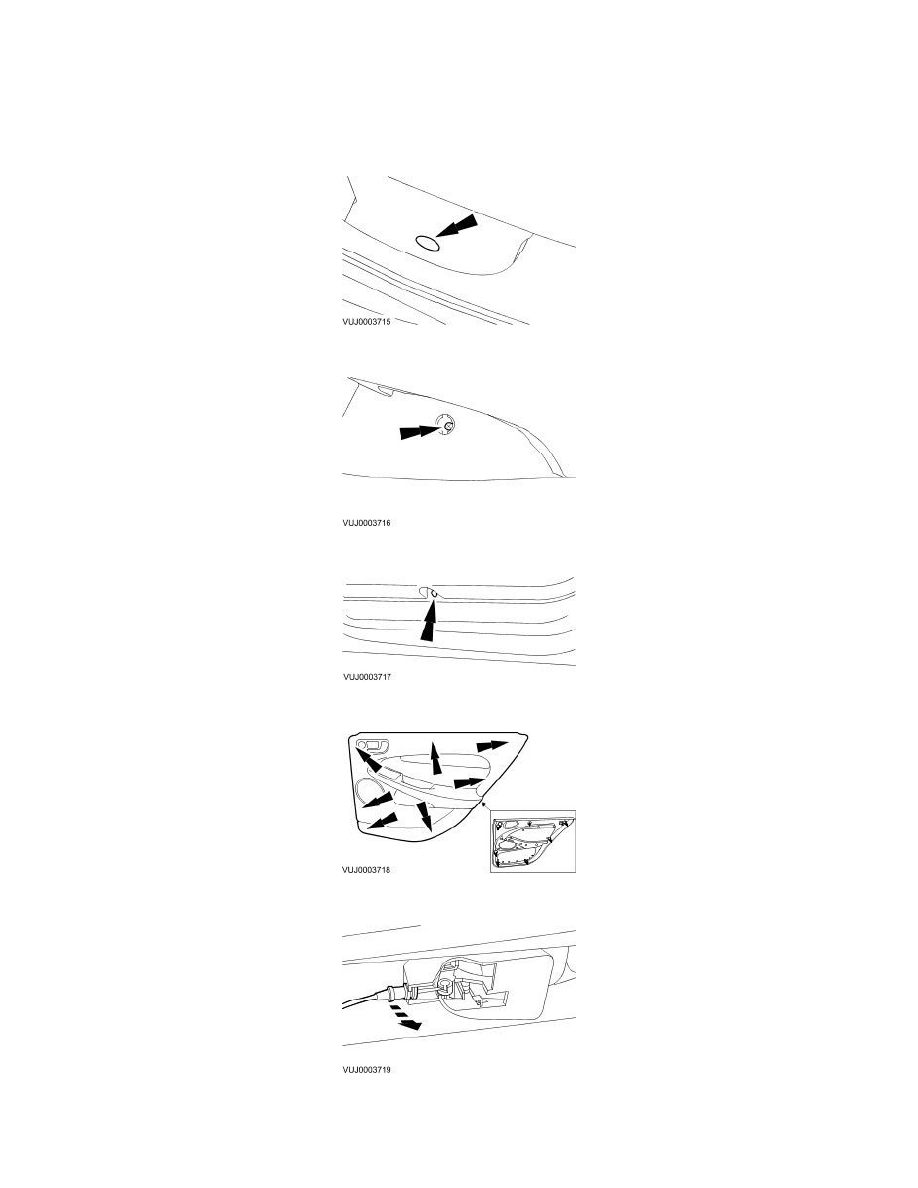

Removal
1. Remove the retaining screw cover.
2. Remove the retaining screw.
3. Remove the retaining screw.
4. Detach the rear door trim panel.
5. Detach the door handle cable.
6. Remove the door handle cable.
