X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1548004.png)

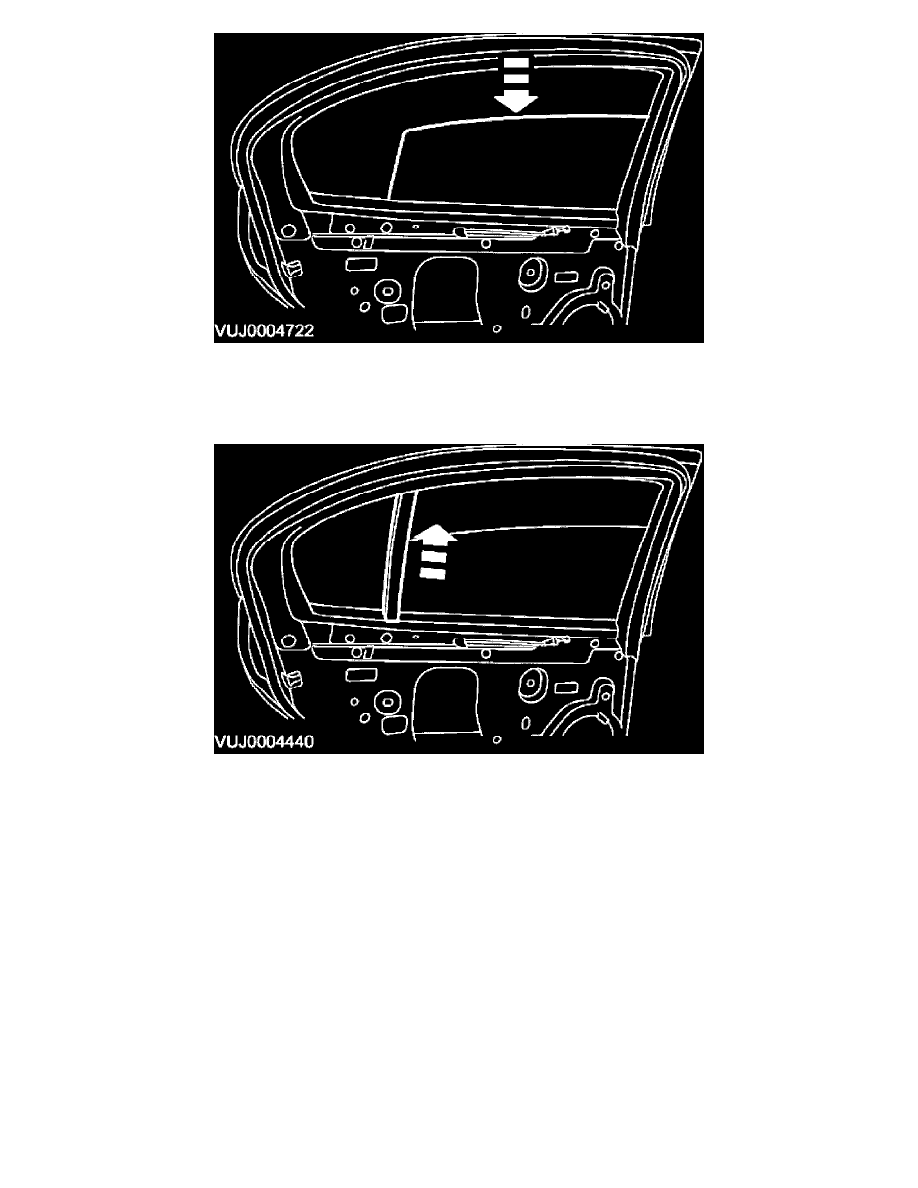

3. NOTE: Insert the glass into the regulator glass clamp and firmly pushed down. Check both sides of the clamp have snapped over the spacer
bracket pin.
Attach the window glass into the regulator clamp.
4. Reposition the rear window guide rail.
5. Install the rear quarter window glass.
