Body - Trunk Lid Difficult to Close|Page 6795 > < Body - Trunk Lid Difficult to Close|Page 6793

X-Type (X400) V6-3.0L (2002)

Page 3
background image

18.

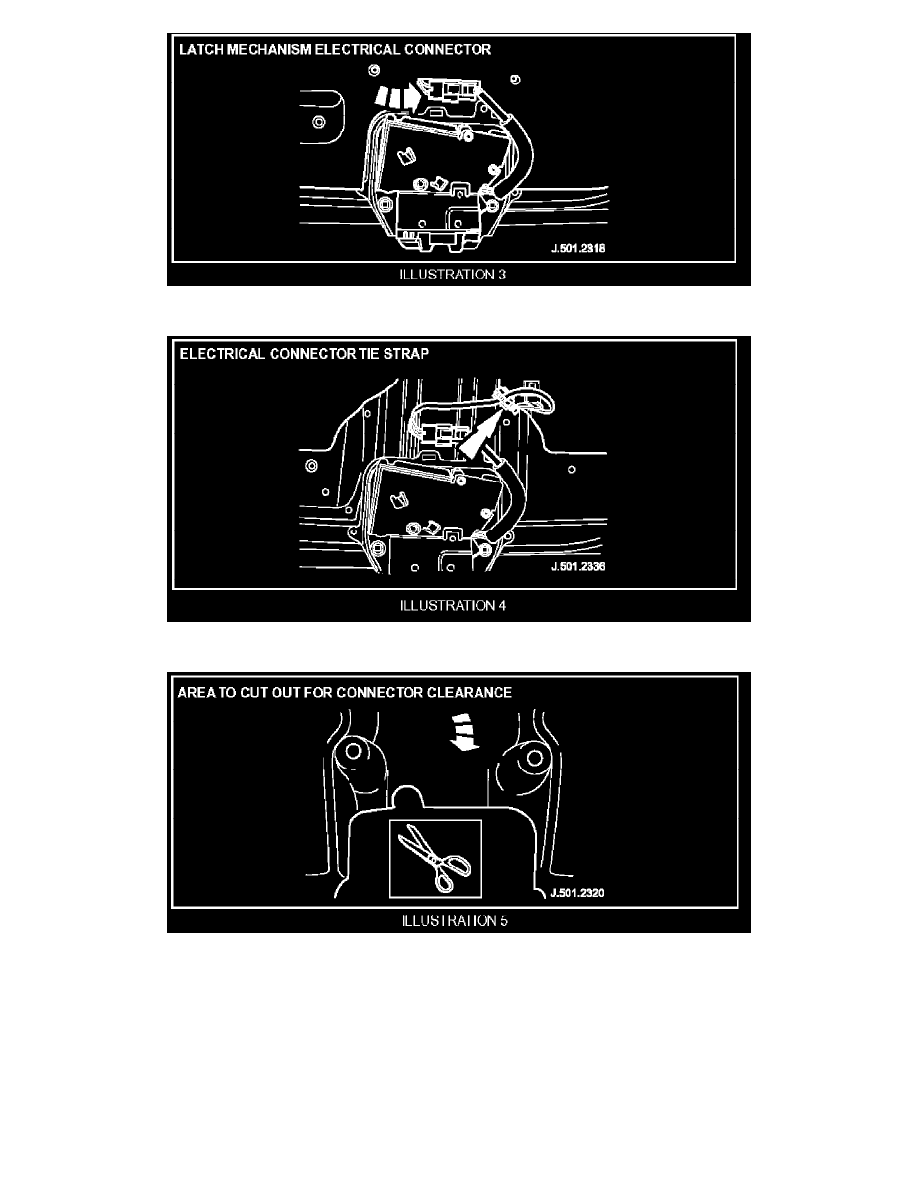

Secure latch mechanism electrical connector to luggage compartment lid (Illustration 3).

19.

Secure latch mechanism electrical harness using tie strap part no. 02S 21317 (Illustration 4).
