X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1590005.png)

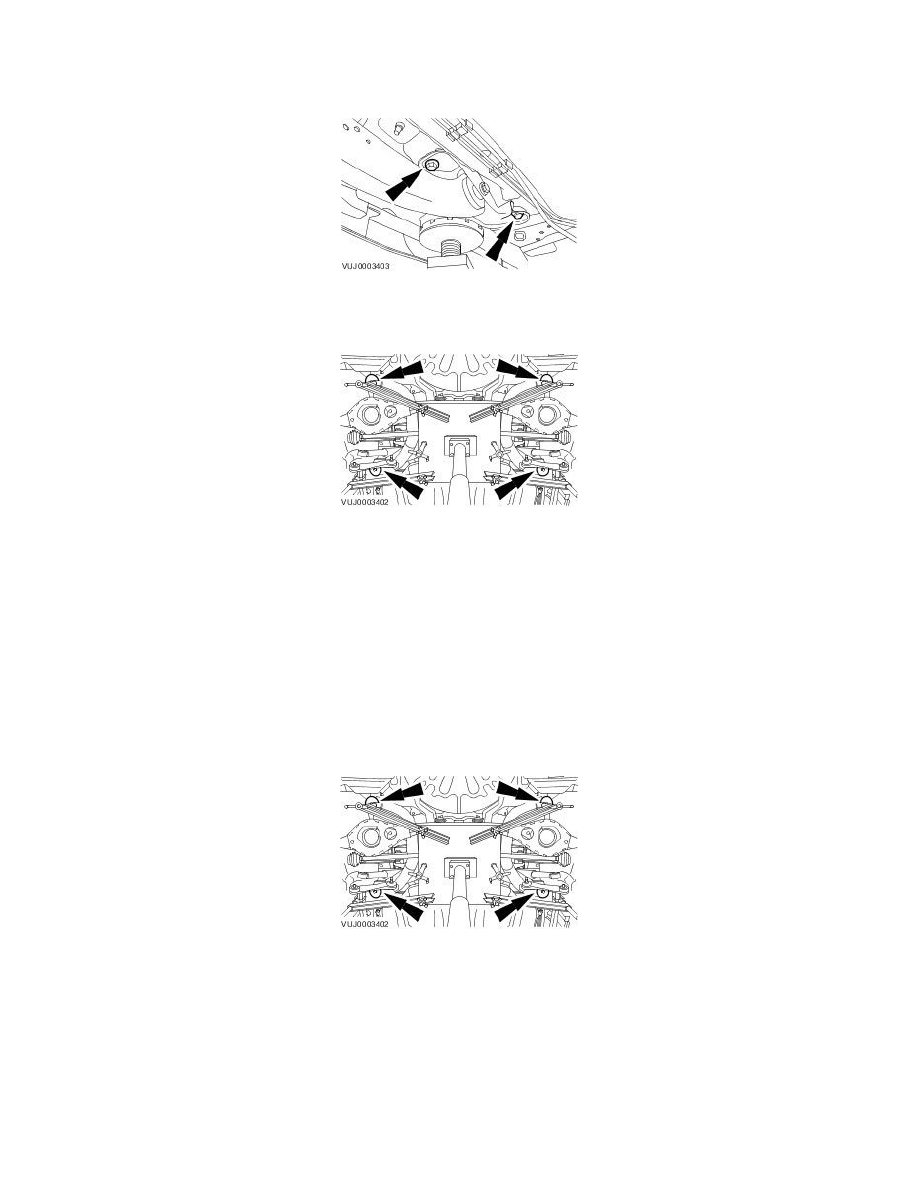

19. NOTE: Left-hand shown, right-hand similar.
Detach the wheel knuckle mounting brackets.
20. NOTE: 2.5L and 3.0L shown, 2.0L similar.
Detach the rear subframe.
21. WARNING: Rotate the special tool height adjustment valve slowly. Failure to follow this instruction can result in personal injury.
Remove the rear subframe.
-
Rotate the special tool height adjustment valve counter clockwise.
Installation
All vehicles
1. NOTE: The final tightening of the suspension components must be carried out with the vehicle on its wheels.
To install, reverse the removal procedure.
2. Tighten to 126 Nm.
Vehicles with 2.5L or 3.0L engine
3. Tighten to 22 Nm.
