X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1667013.png)

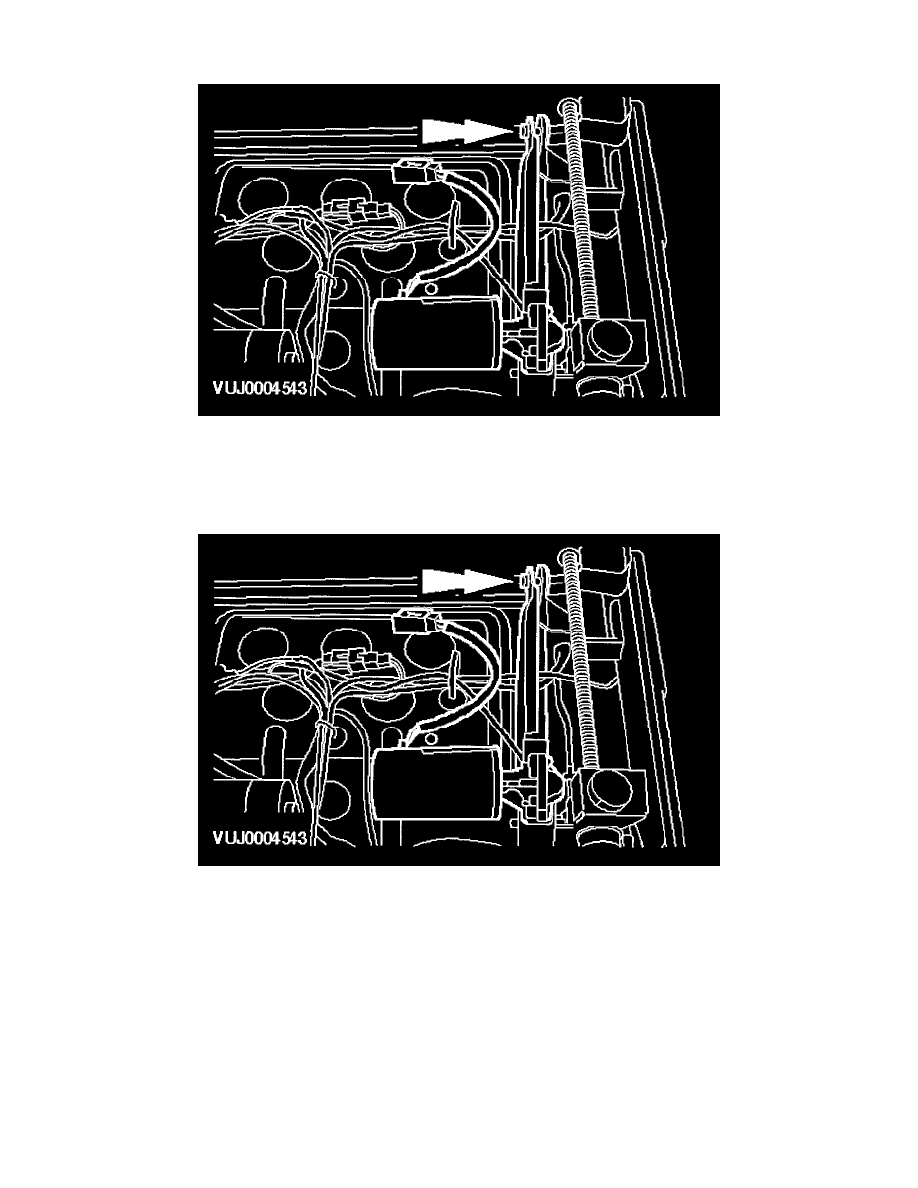

4. Remove the rear height adjustment motor roll pin.
5. Remove the front seat cushion rear height adjustment motor.
-
Remove the retaining bolt.
Installation
1. To install, reverse the removal procedure.
-
Tighten to 10 Nm.
Motor - Front Seat Track
Removal
1. Remove the front seat. See: Service and Repair/Removal and Replacement
