X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1672005.png)

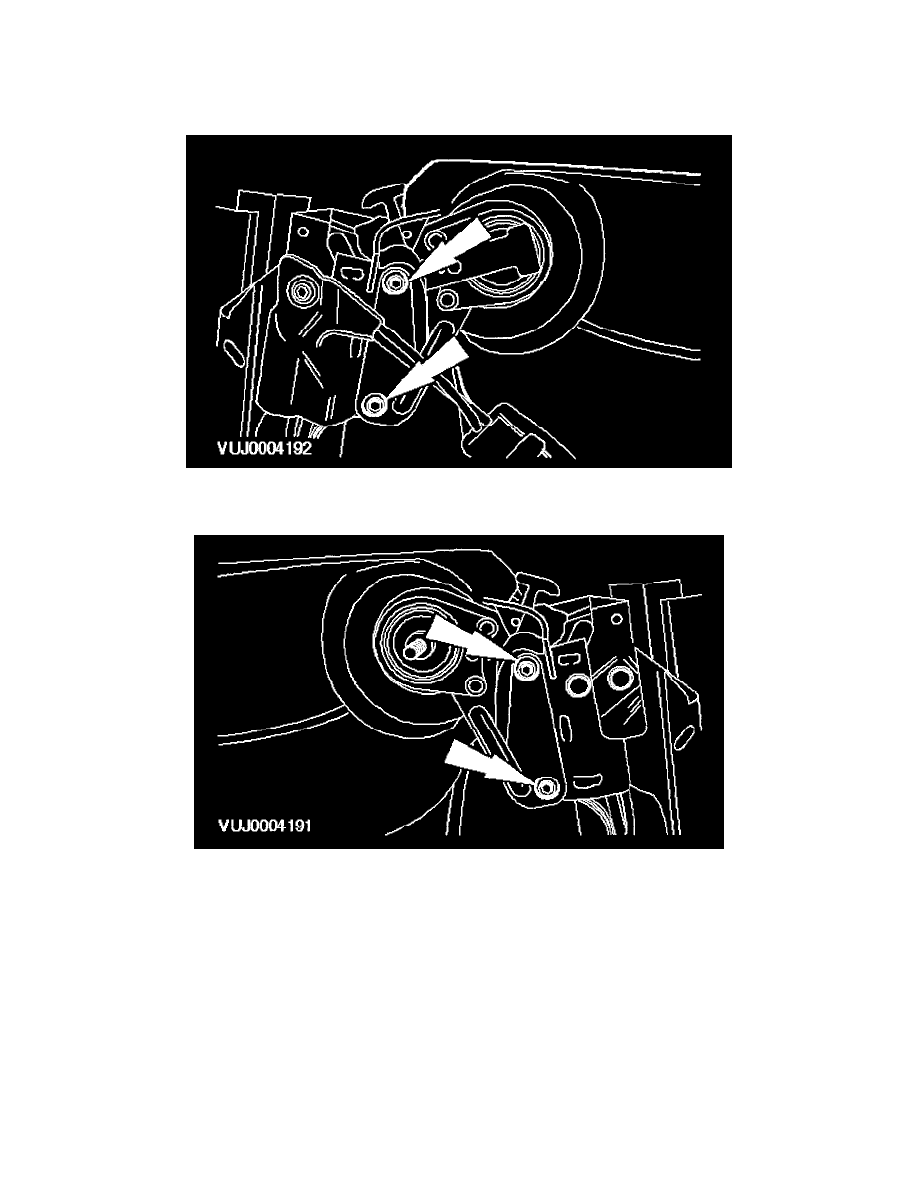

NOTE: Left hand shown, right hand similar.
Installation
1. To install, reverse the removal procedure
-
Tighten to 25 Nm.
2. Tighten to 25 Nm.
Rear Seat Backrest
Rear Seat Backrest (76.70.38)
Removal
1. Remove the rear seat cushion.
2. Remove the rear center safety belt and buckle.
-
Remove the retaining bolt.
