X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-978001.png)
Brake Caliper: Service and Repair
Front Brake System
Special Service tools

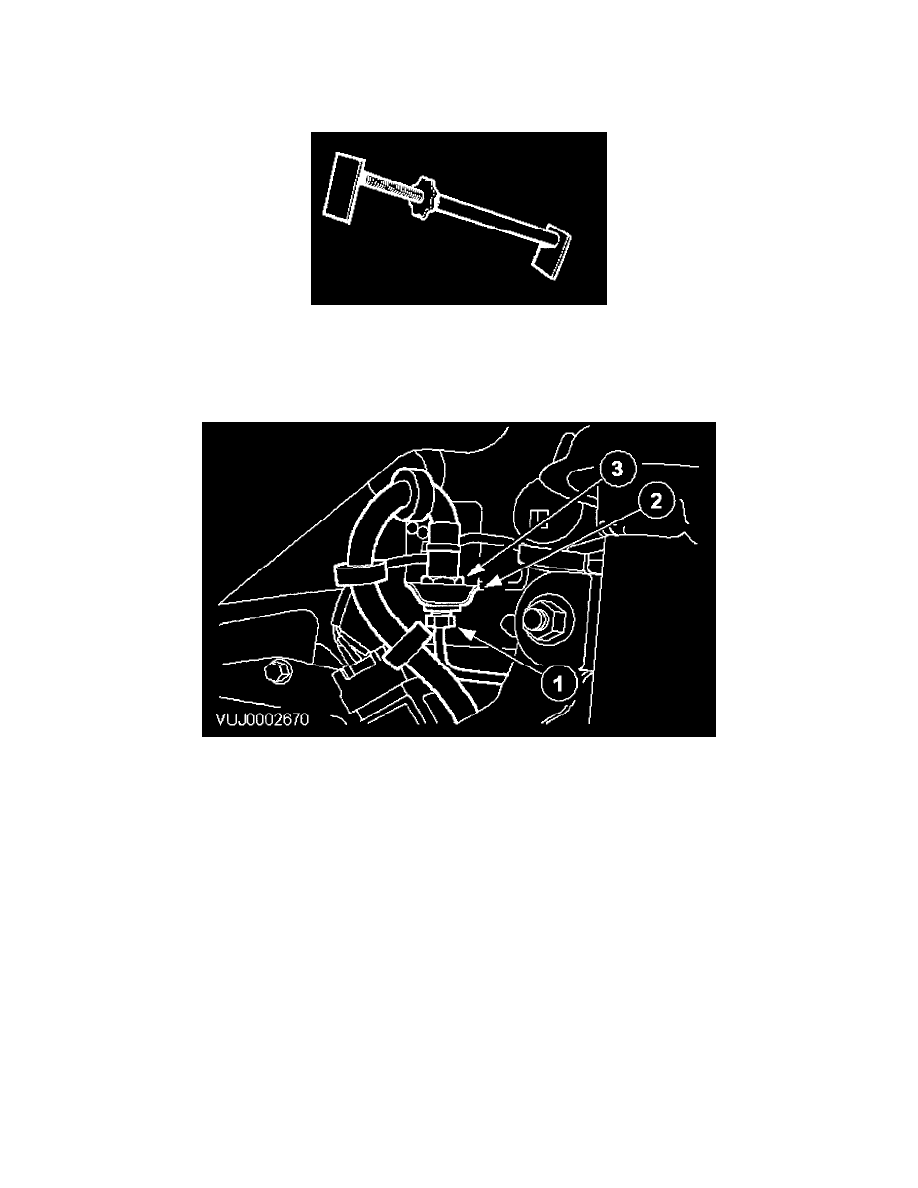

Brake pedal hold-down tool JDS 9013
Removal
1. Remove the wheel and tire. For additional Information, refer to Steering and Suspension.
2. CAUTION: If brake fluid is split on the paintwork, the affected area must be immediately washed down with cold water.
NOTE: To prevent the loss of brake fluid, apply the brake pedal hold down tool and adjust to hold the brake pedal down 40 mm. Install a bleeder
bottle to the bleed nipple and loosen.
Detach the brake hose.
1. Detach the brake pipe.
2. Remove the retaining clip.
3. Detach the brake hose.
