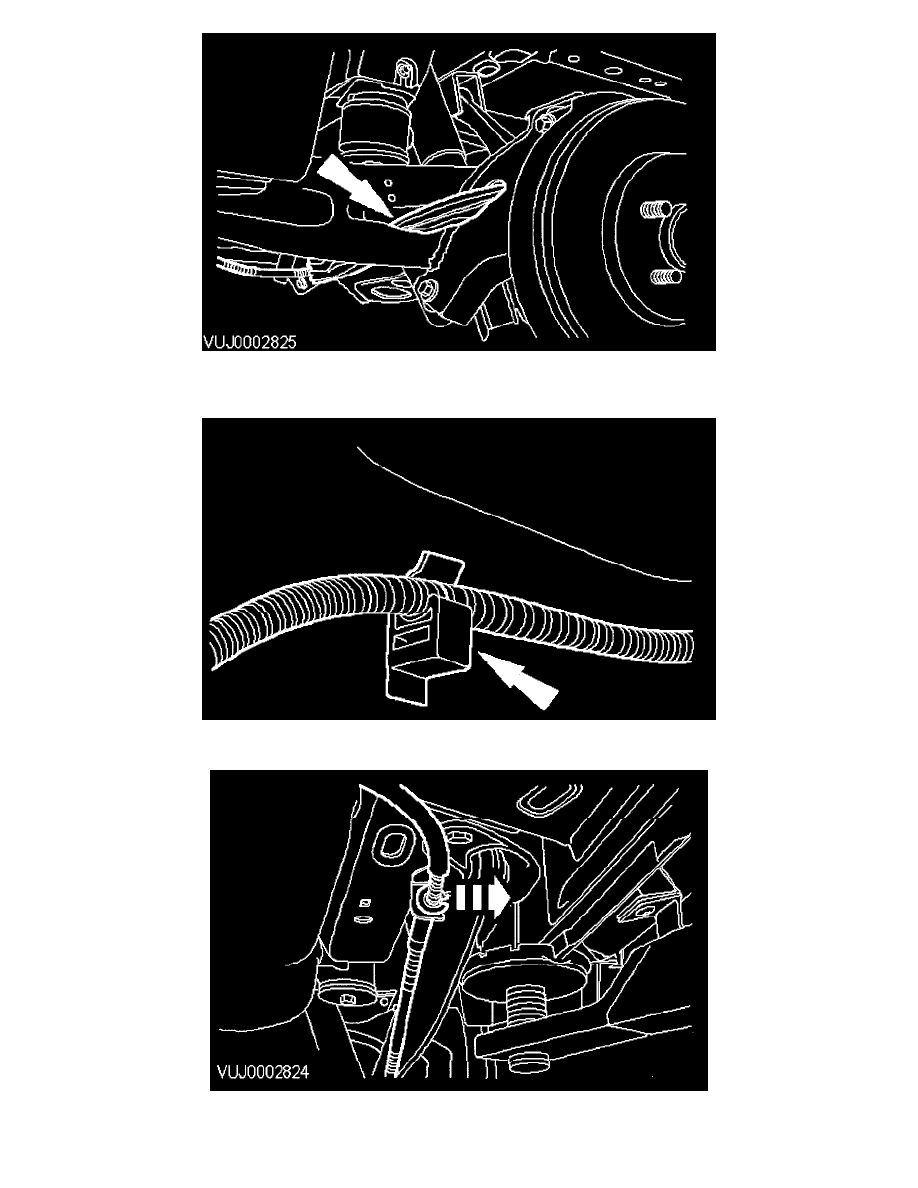

4. Detach the parking brake cable and conduit.
5. Remove the body undertray.

6. Detach the parking brake cable and conduit.

7. Detach the parking brake cable and conduit.
