X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1036005.png)

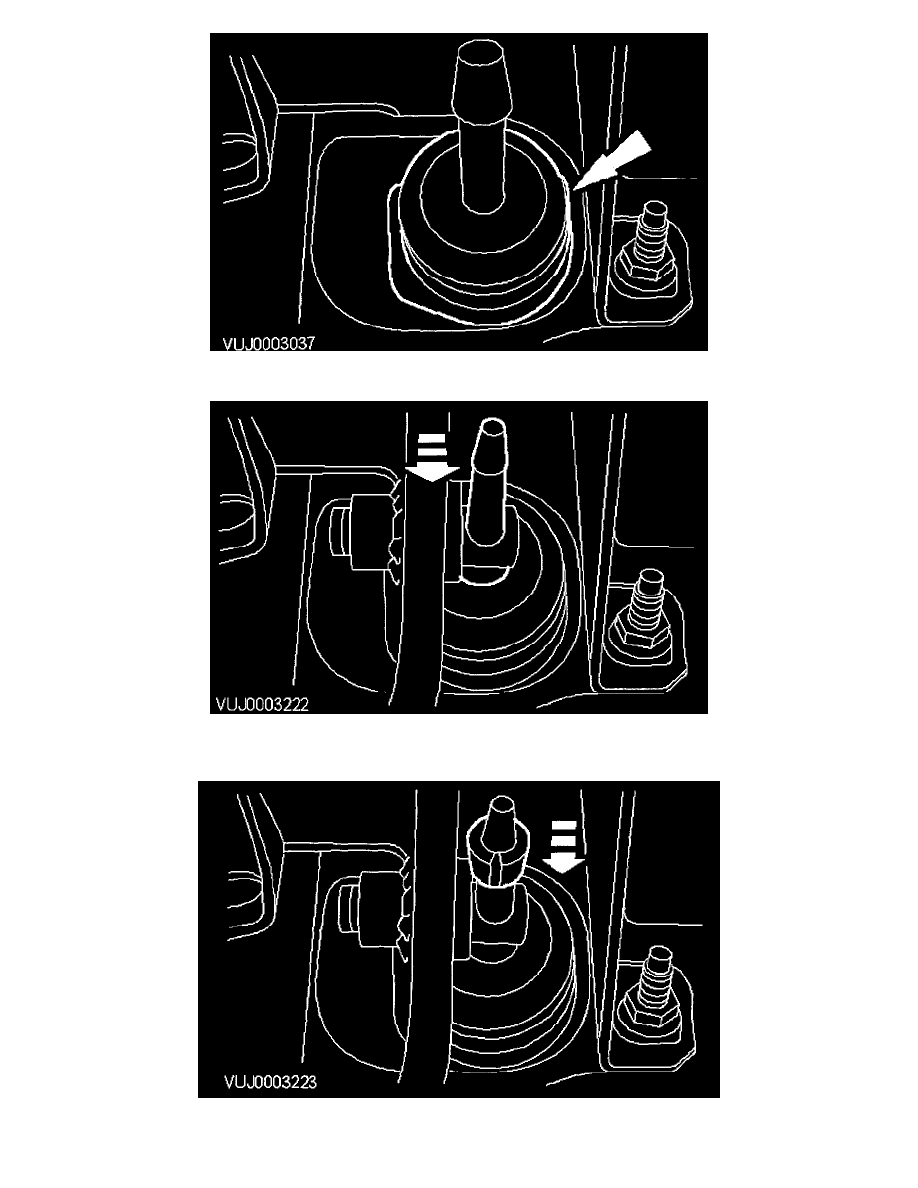

4. Attach the brake booster push rod grommet.
5. Install the brake booster push rod.
-
Reposition the brake pedal.
6. Install the brake booster push rod retaining clip.
