X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-342001.png)
Valve Cover: Service and Repair
Right Hand Side
Removal

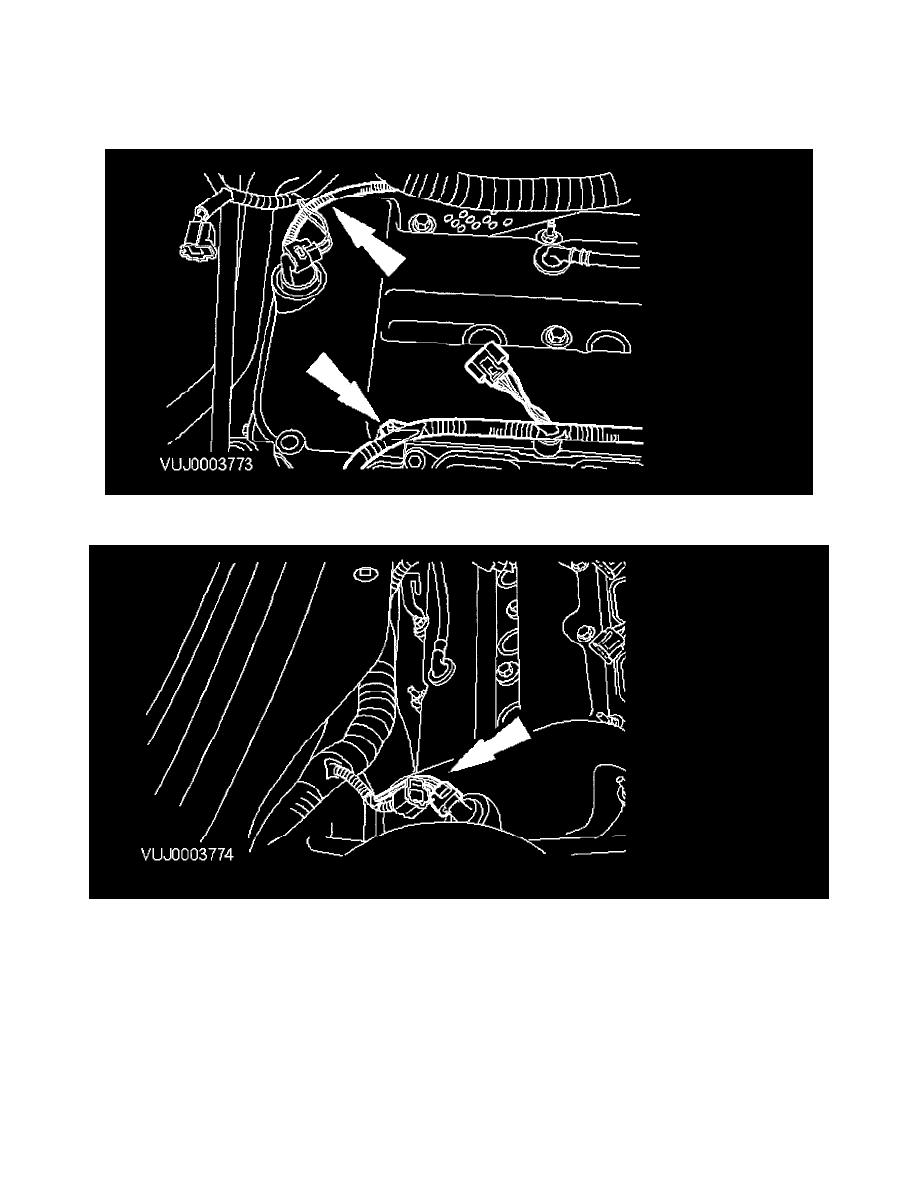

1. Remove the ignition coils. For additional information, refer to Starting and Charging.
2. Detach the wiring harness.
3. Disconnect the variable camshaft timing (VCT) solenoid electrical connector.
