X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-359004.png)

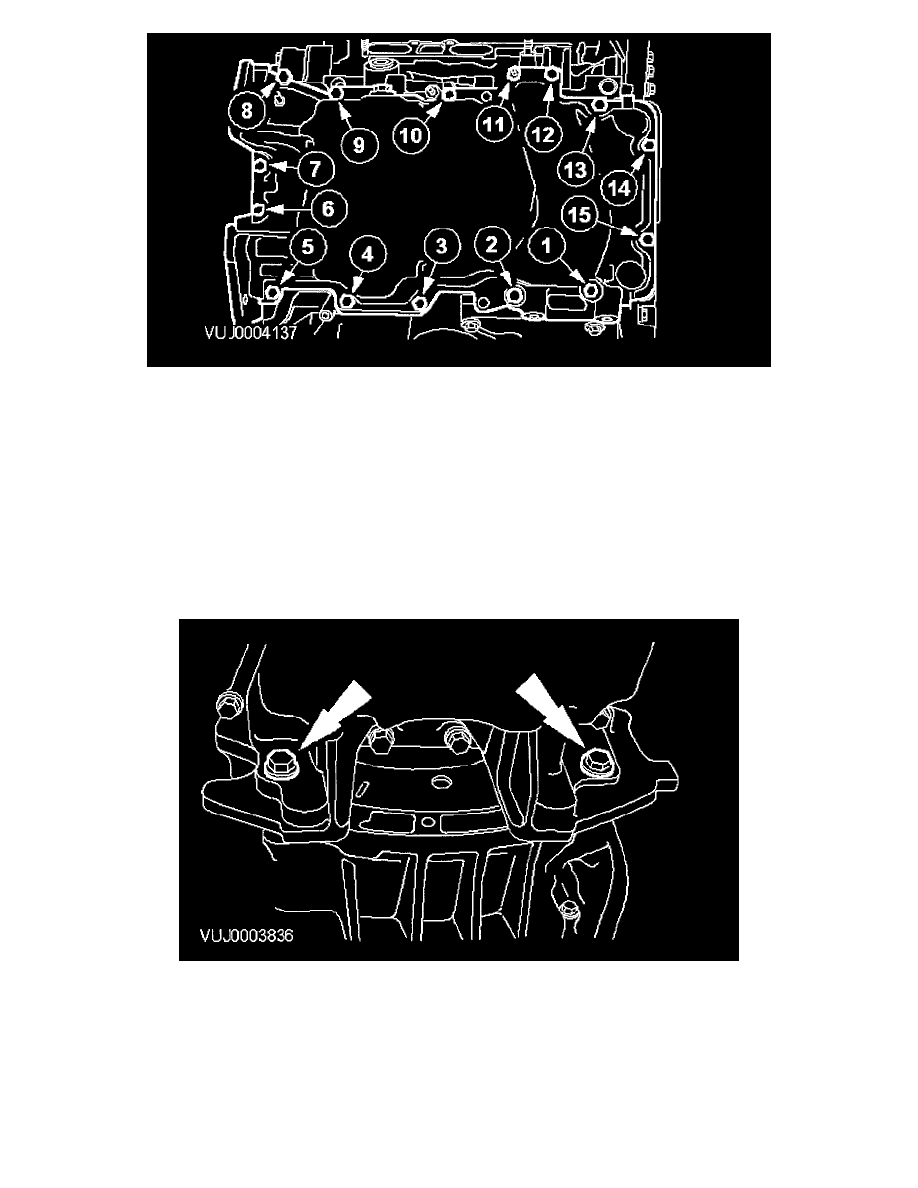

1. NOTE: Apply a 10 mm diameter dot of silicone sealant WSE-M4G323-A6 or equivalent meeting Jaguar specification to the engine front cover to
the cylinder block mating joints.
NOTE: Loosely install the oil pan to transmission housing bolts.
NOTE: The oil pan retaining bolts numbered 1 and 2 are longer than the retaining bolts numbered 3 through 15.
NOTE: Tighten the oil pan bolts within six minutes of applying sealer.
To install, reverse the removal procedure.
-
Install the new oil pan gasket.
-
Complete the tightening sequence.
-
Tighten to 25 Nm.
2. Tighten to 45 Nm.
