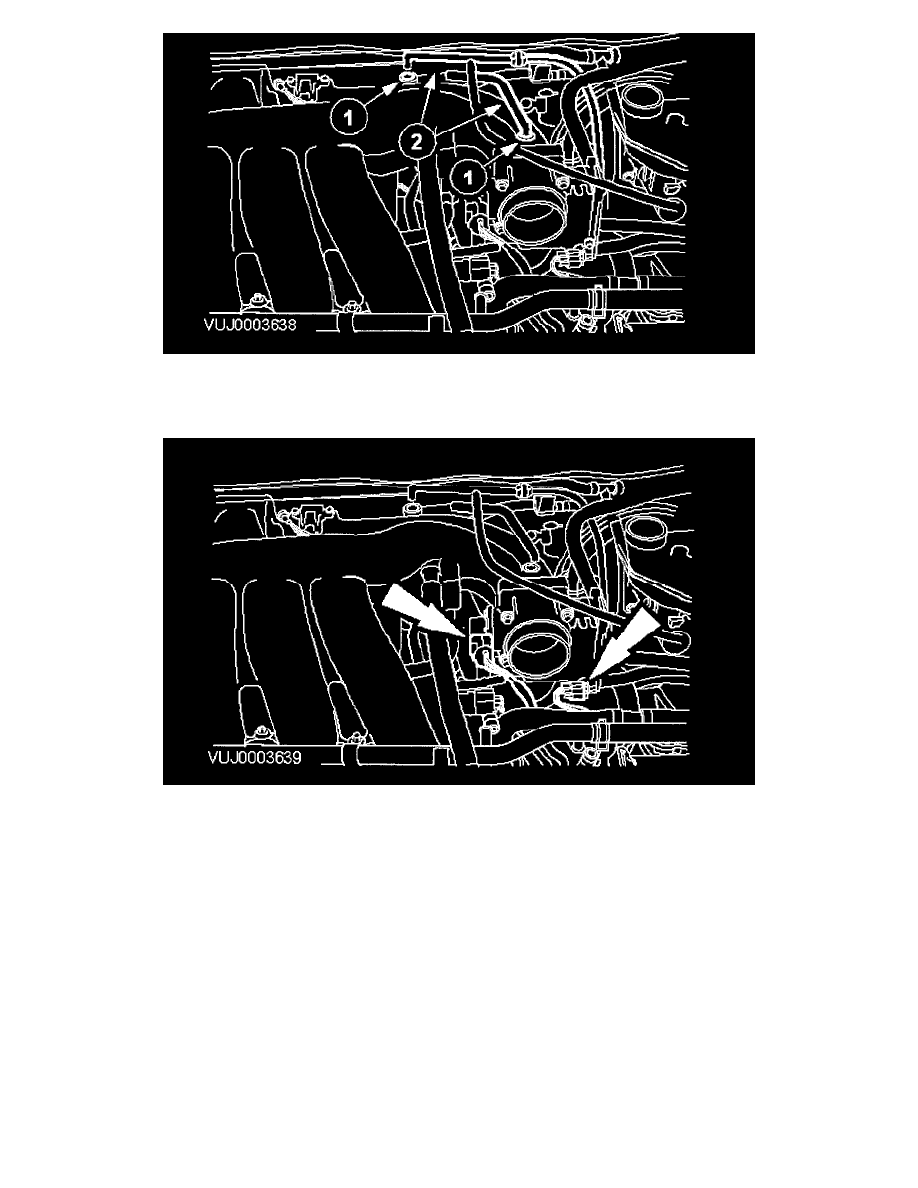

6. Detach the vacuum hose.

1 Press the retaining ring.
2 Detach the vacuum hose.

7. Disconnect the electrical connectors.
