X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-372001.png)
Timing Cover: Service and Repair
Removal
Removal
CAUTION: It is necessary to remove the engine in order to remove the engine front cover.
1. Using a suitable container drain the engine oil.
2. Remove the automatic or manual transmission. For additional information, refer to Transmission and Drivetrain.

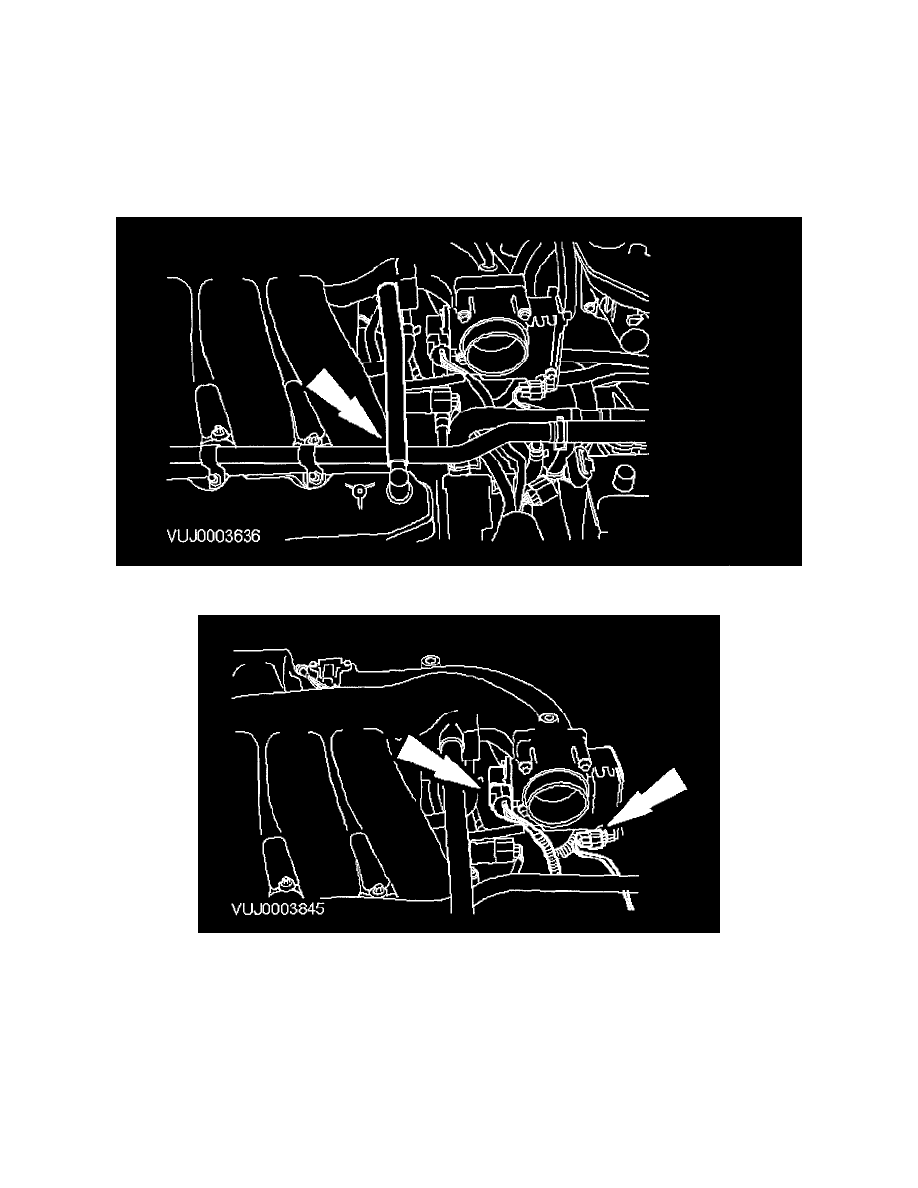

3. Detach the positive crank case ventilation hose.
4. Disconnect the electrical connectors.
