Jaguar X-Type V6-30L Engine Exhaust Manifold Specifications

Exhaust Manifold|Specifications|Page 1604 > < Catalyst Shield|Specifications

Page 1

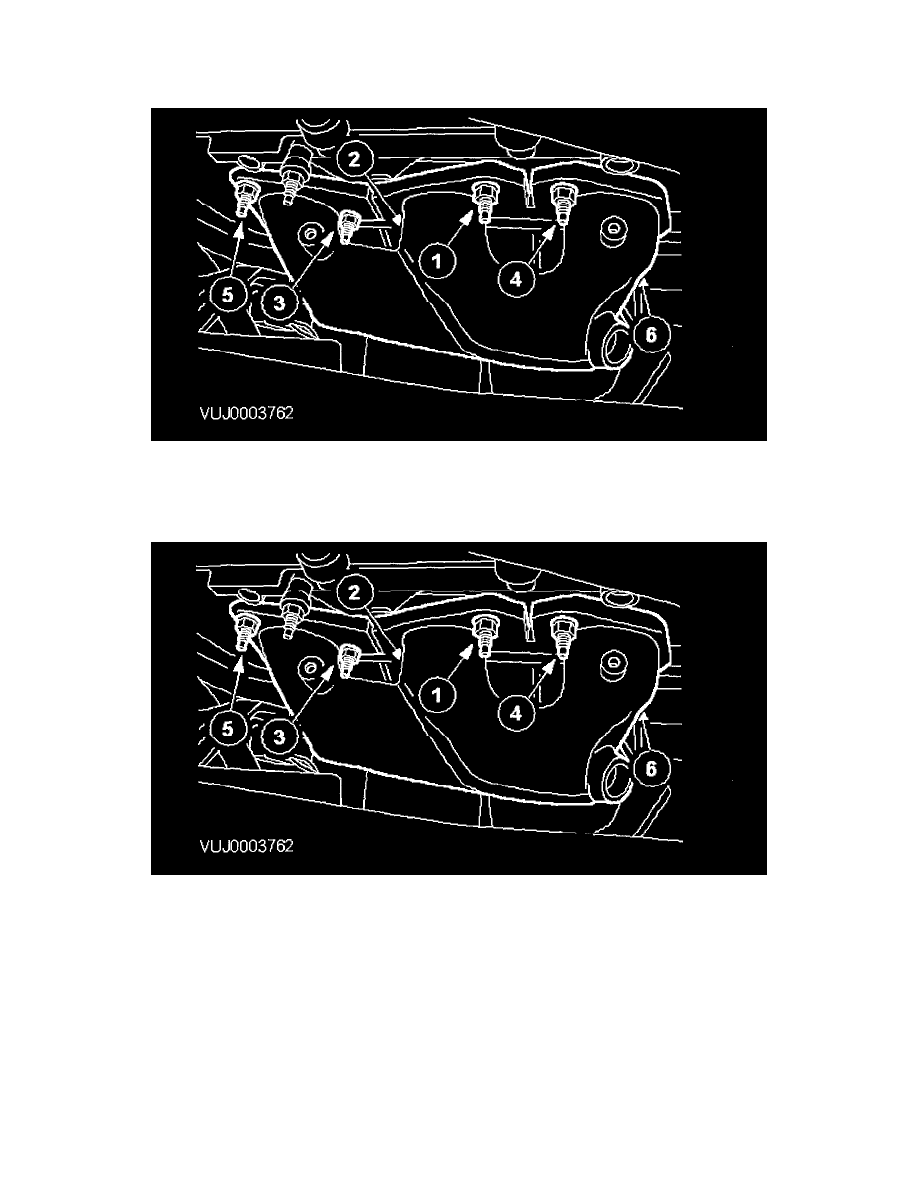

Exhaust Manifold: Specifications

Exhaust Manifold Right Side

Tightening Sequence

Torque ..................................................................................................................................................................................................................... 20 Nm

Exhaust Manifold Left Side

Tightening Sequence

Engine, Cooling and Exhaust
Exhaust System
Exhaust Manifold
Component Information
Specifications
