Air Inlet Blend Door Actuator|Page 5328 > < Air Inlet Blend Door Actuator|Page 5326

X-Type (X400) V6-3.0L (2002)

Page 2
background image

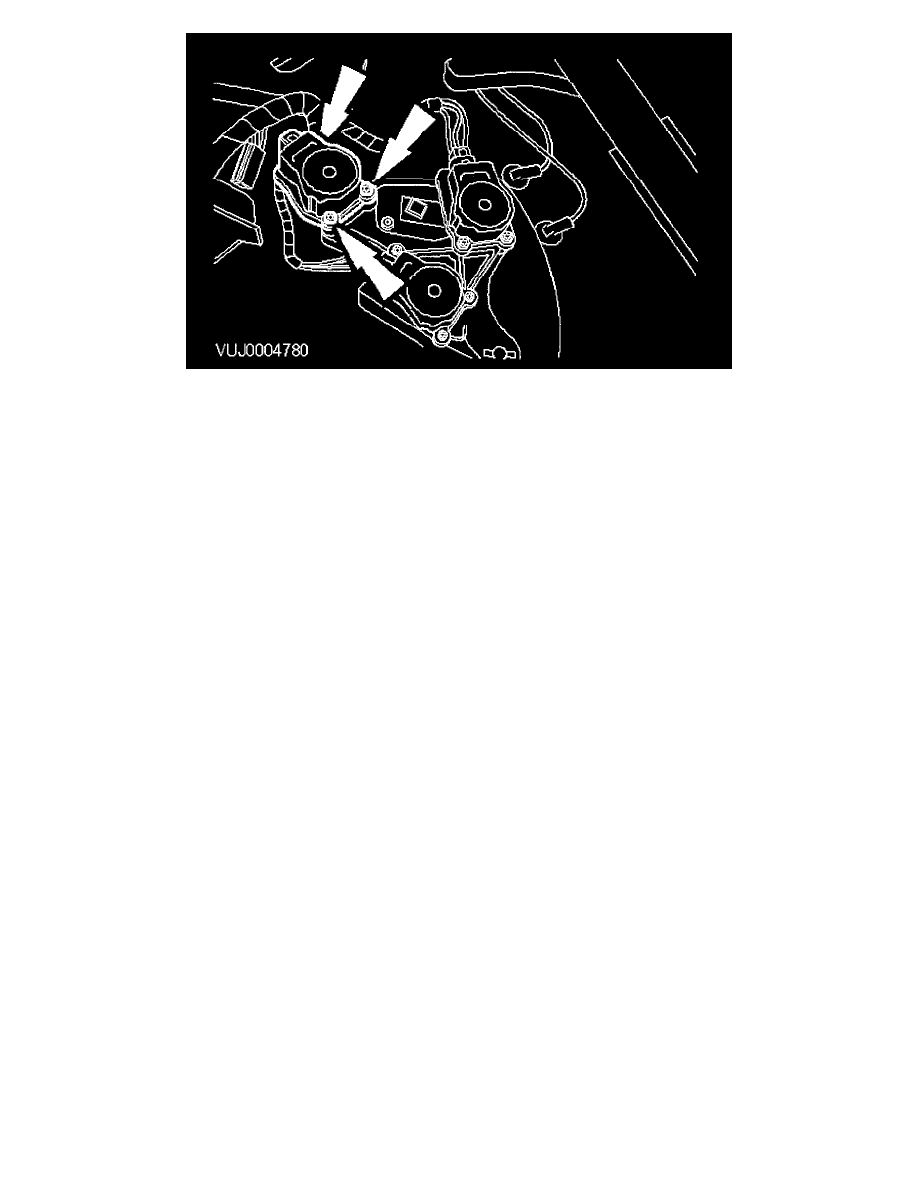

3. Remove the footwell vent/duct blend door actuator.

-

Remove the retaining screws.


Installation

1. NOTE:  Make sure the drive gear is fully meshed with the driven gear before tightening the retaining screws.

To install, reverse the removal procedure.

Air Inlet Blend Door Actuator|Page 5328 > < Air Inlet Blend Door Actuator|Page 5326
