X-Type (X400) V6-3.0L (2002)

Page 4
background image

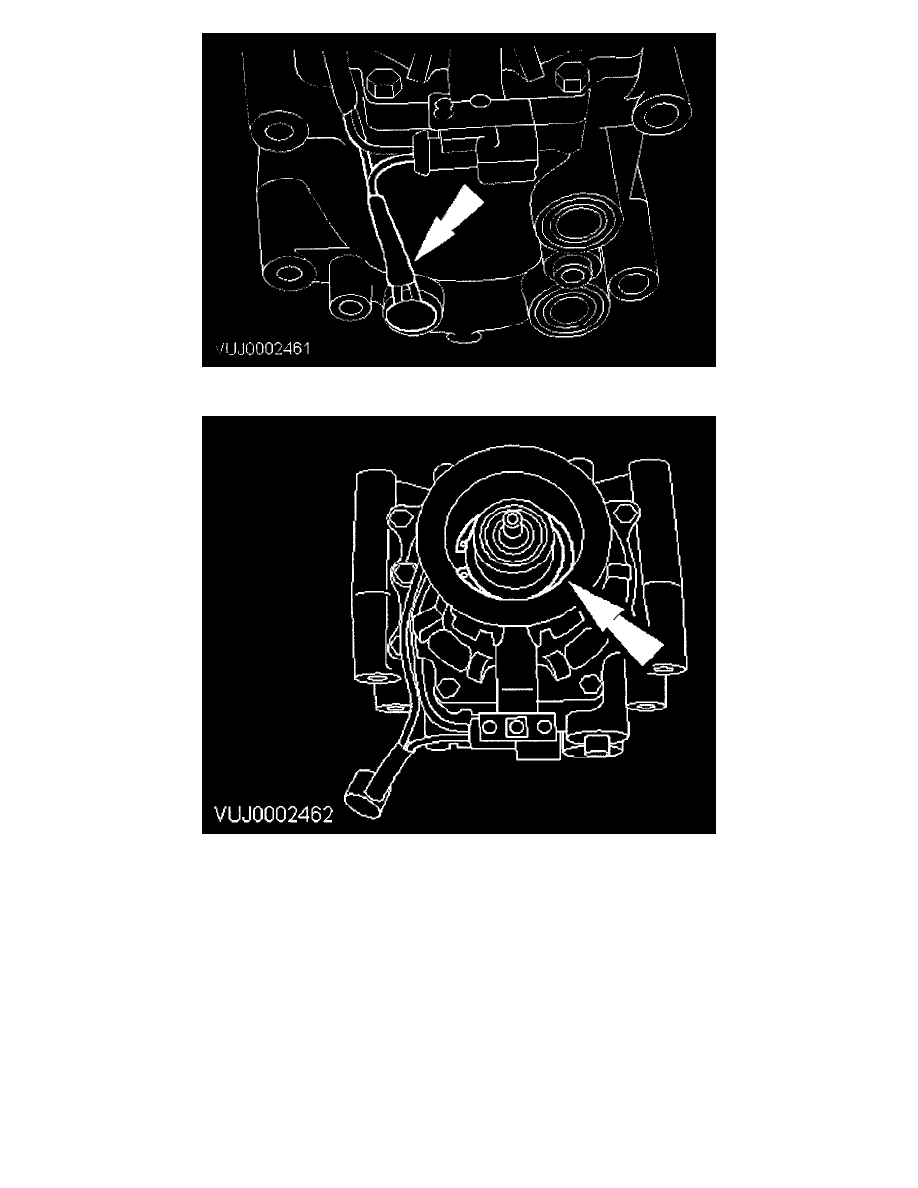

8. Detach the A/C sensor.

9. Remove the A/C clutch and clutch field coil circlip.
