X-Type (X400) V6-3.0L (2002)

Page 6

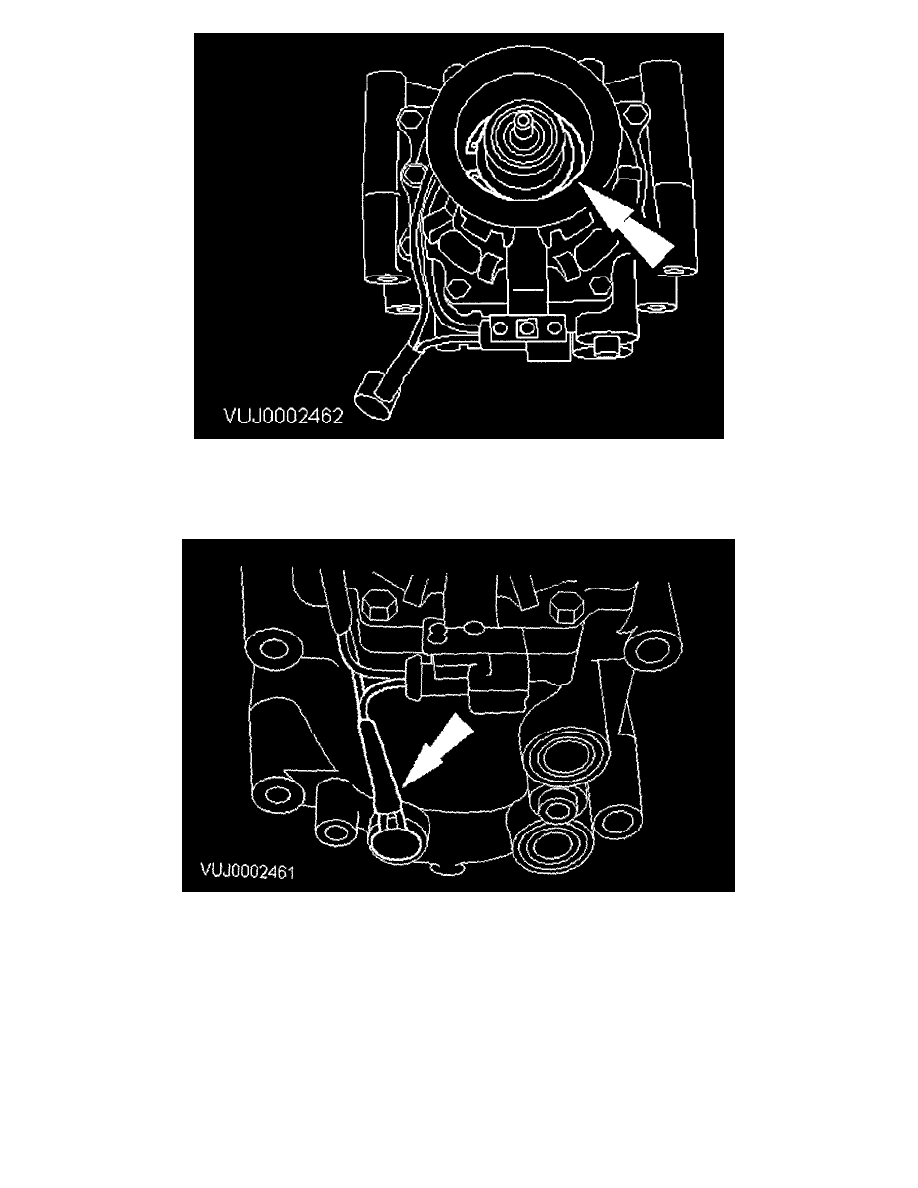

background image

2. CAUTION:

Make sure the circlip is fitted and seated correctly.

Install the A/C clutch and clutch field coil circlip.

3

Attach the A/C sensor.
