Control Assembly, HVAC|Service and Repair|Page 5501 > < Control Assembly, HVAC|Service and Repair|Page 5499

X-Type (X400) V6-3.0L (2002)

Page 3
background image

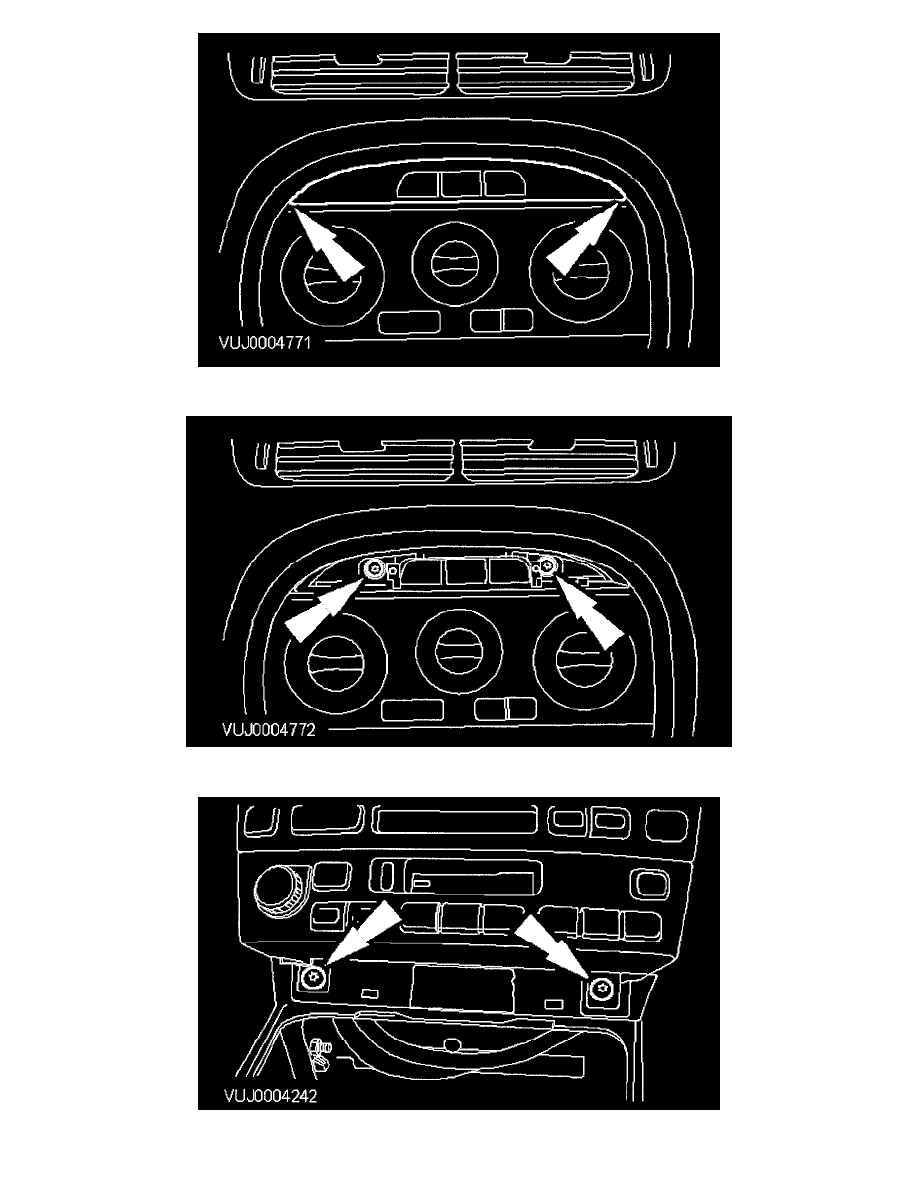

6. Remove the climate control assembly mounting bracket upper retaining screws cover.

7. Remove the climate control assembly mounting bracket upper retaining screws.

8. Remove the climate control assembly mounting bracket lower retaining screws.
