X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1289003.png)

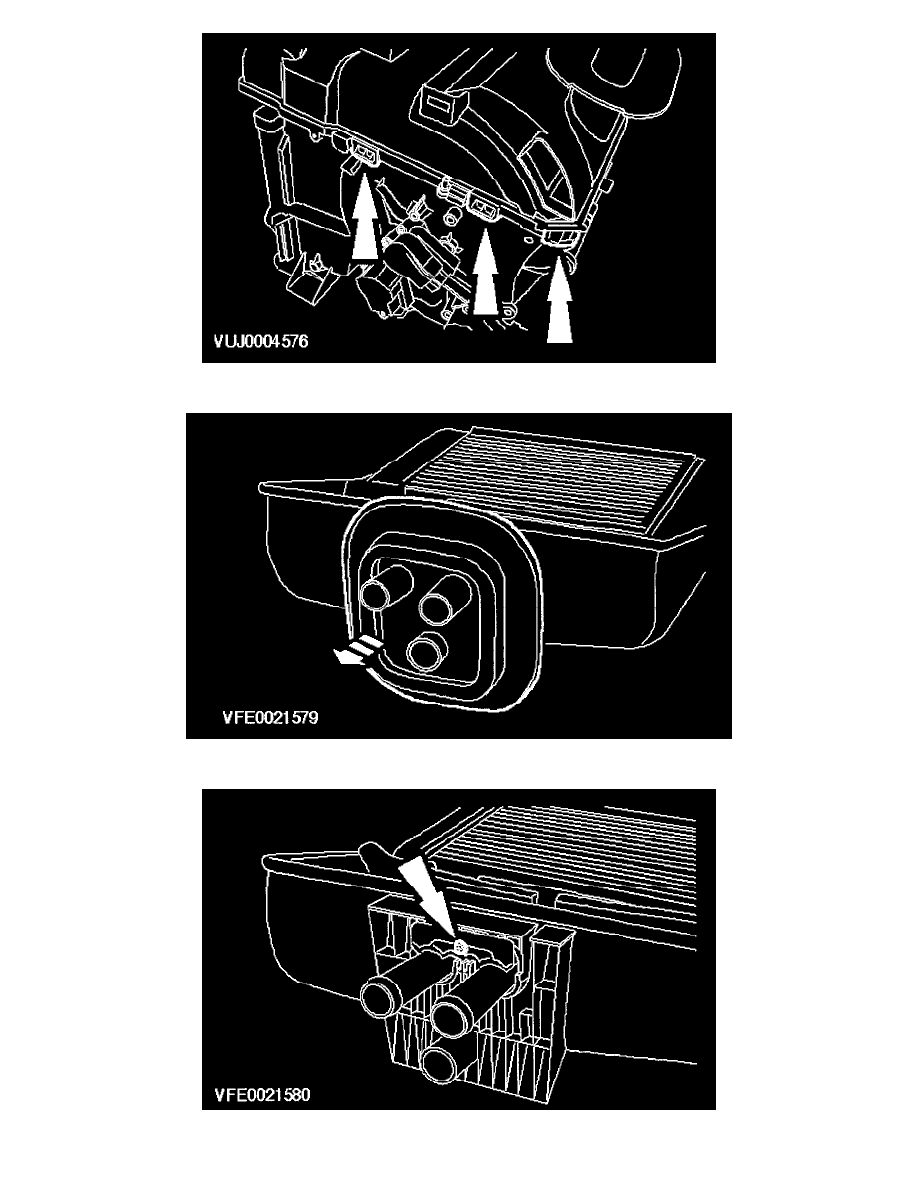

6. Remove the heater core housing.
7. Remove the rubber seal.
8. Remove the heater core retaining bolt.
