Jaguar Workshop Service and Repair Manuals > X-Type (X400) V6-3.0L (2002) > Heating and Air Conditioning | Evaporator Case | Component Information | Service and Repair | Removal and Installation

Page 5

11. Remove the manual control blower motor resistor.

Remove the manual control blower motor resistor retaining screw.

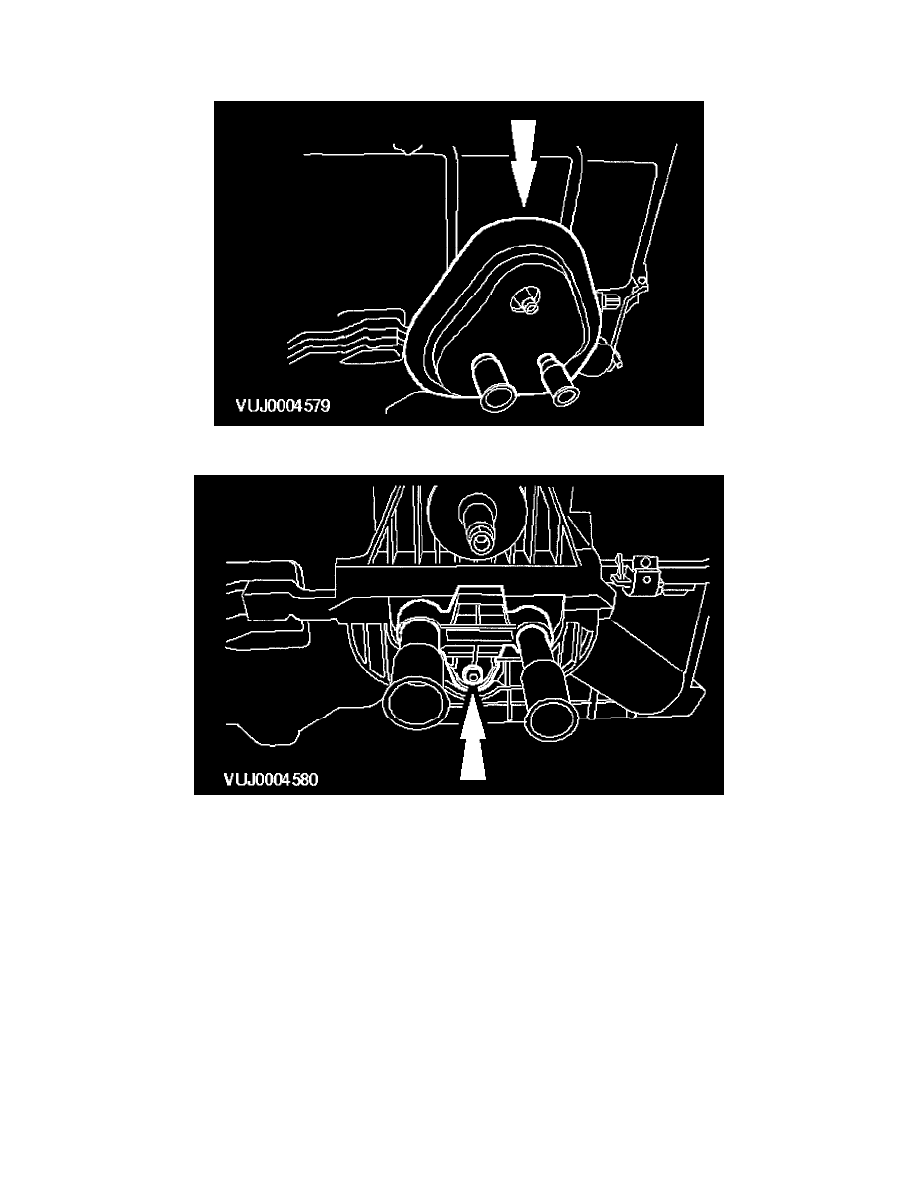

12. Remove the rubber seal.

13. Remove the evaporator core retaining screw.
