X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1289007.png)

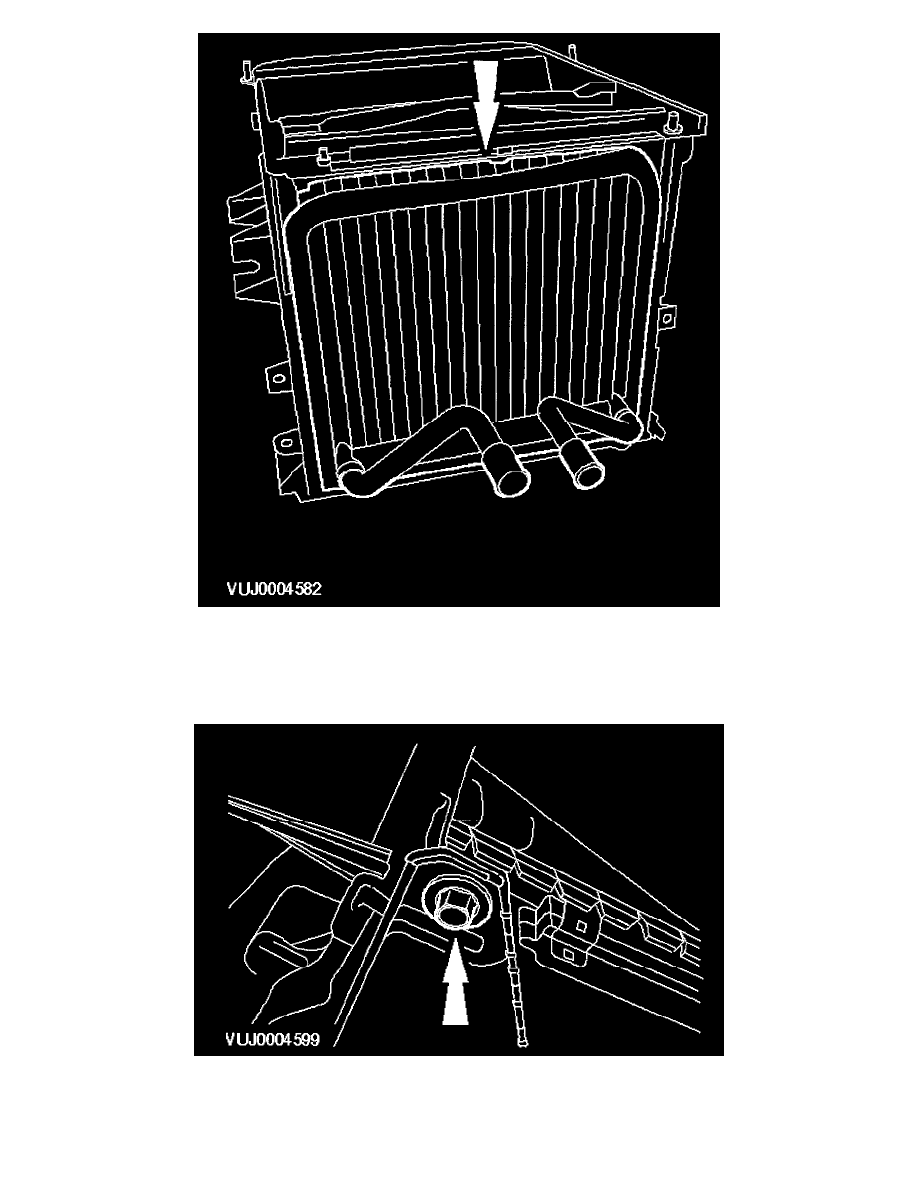

15. Remove the evaporator core.
Assembly
1. To assemble, reverse the disassembly procedure.
2. Tighten to 7 Nm.
