X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-279004.png)

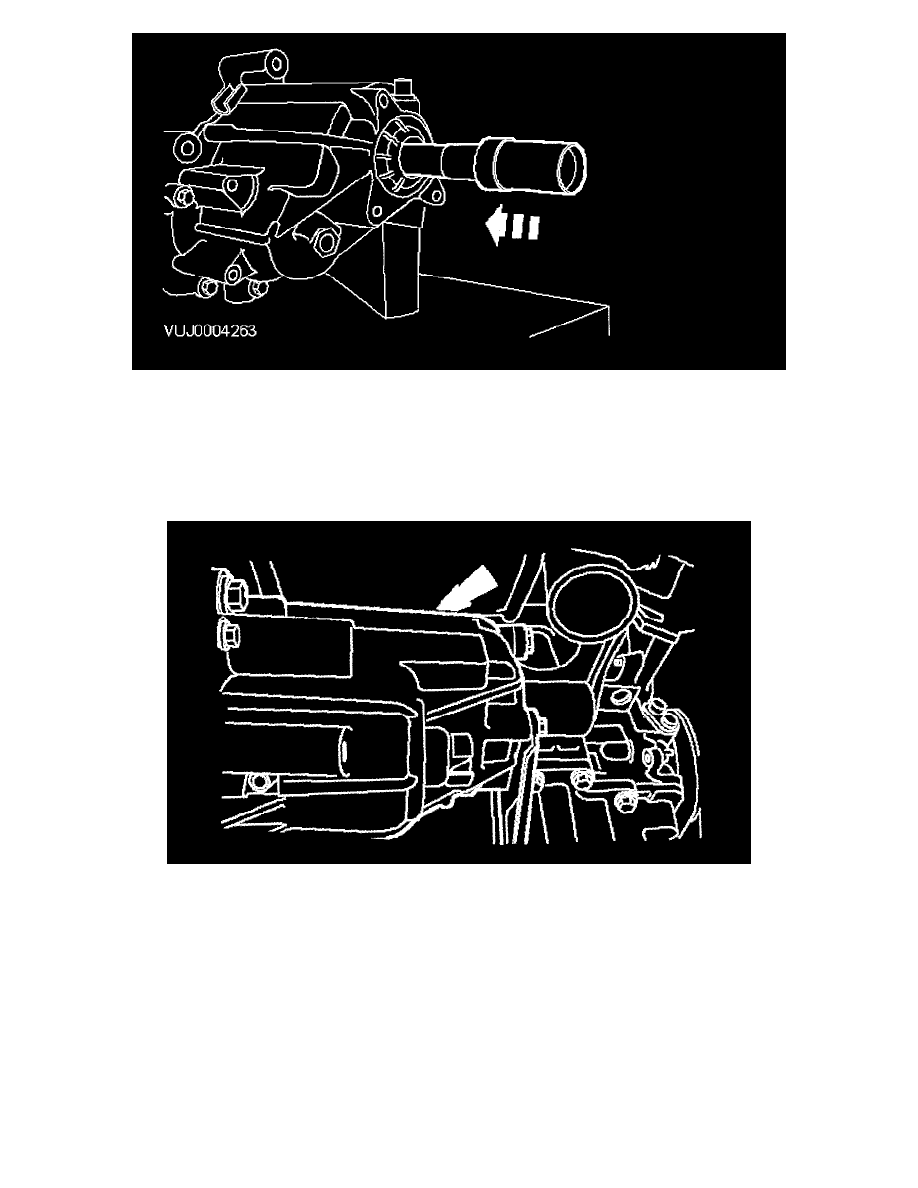

7. Install the pinion housing in the transfer case.
1. Install the pinion housing retaining bolts.
2. Install the pinion housing retaining bolts.
^
Tighten M8 studs to 35 Nm.
CAUTION: Make sure the shims between the transfer case housing and pinion housing are correctly aligned.
8. Remove the transfer case fill plug.
^
Using a suitable syringe, add 550 Ml of SAE 75W 140 to the transfer case.
