Jaguar Workshop Service and Repair Manuals > X-Type (X400) V6-3.0L (2002) > Power and Ground Distribution | Relays and Modules - Power and Ground Distribution | Relay Box | Component Information | Locations | Page 4683

Relay Box > < Relay and Fuse Location|Page 4682

Page 1

background image

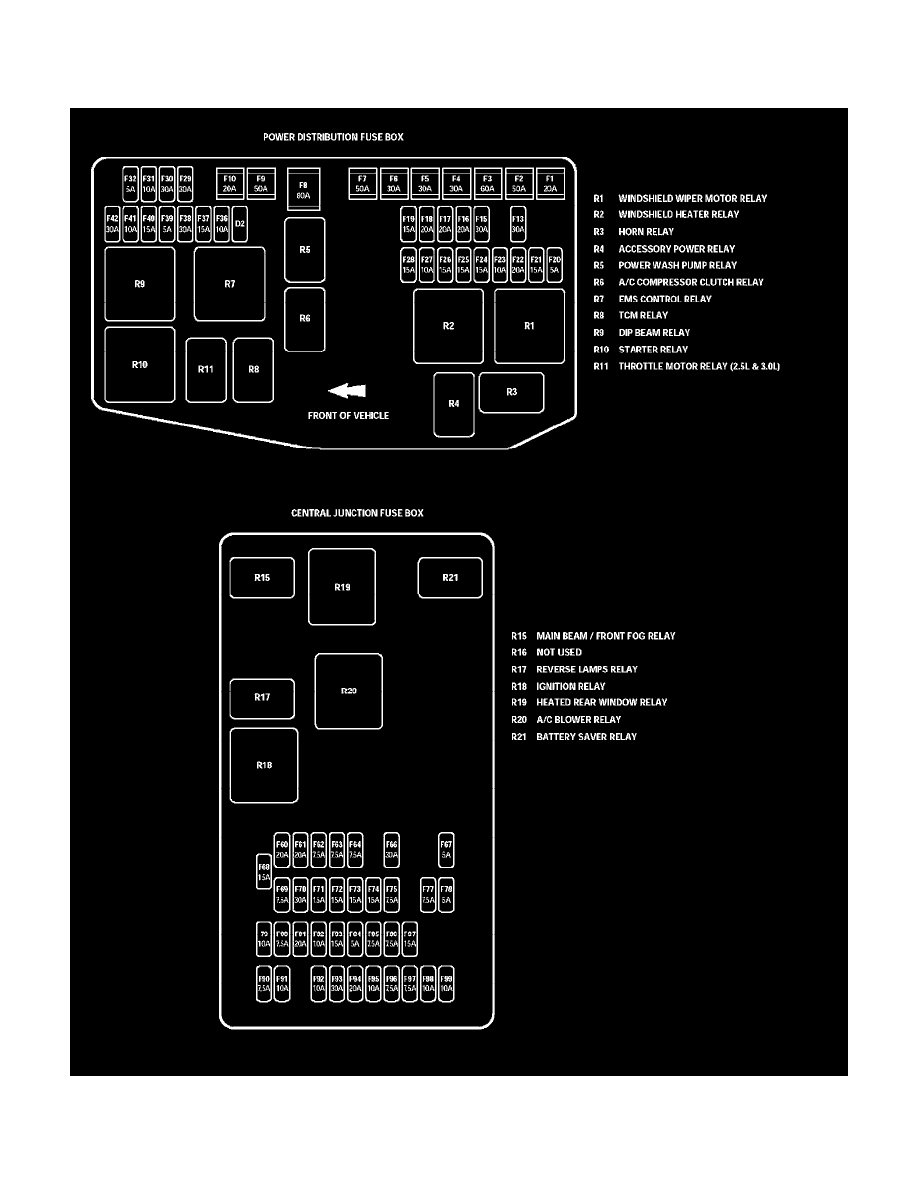

Relay Box: Application and ID

Relay and Fuse Location

Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 4683
