X-Type (X400) V6-3.0L (2002)

Page 1
background image

Air Filter Element: Service and Repair

Air Cleaner Element 19.10.08

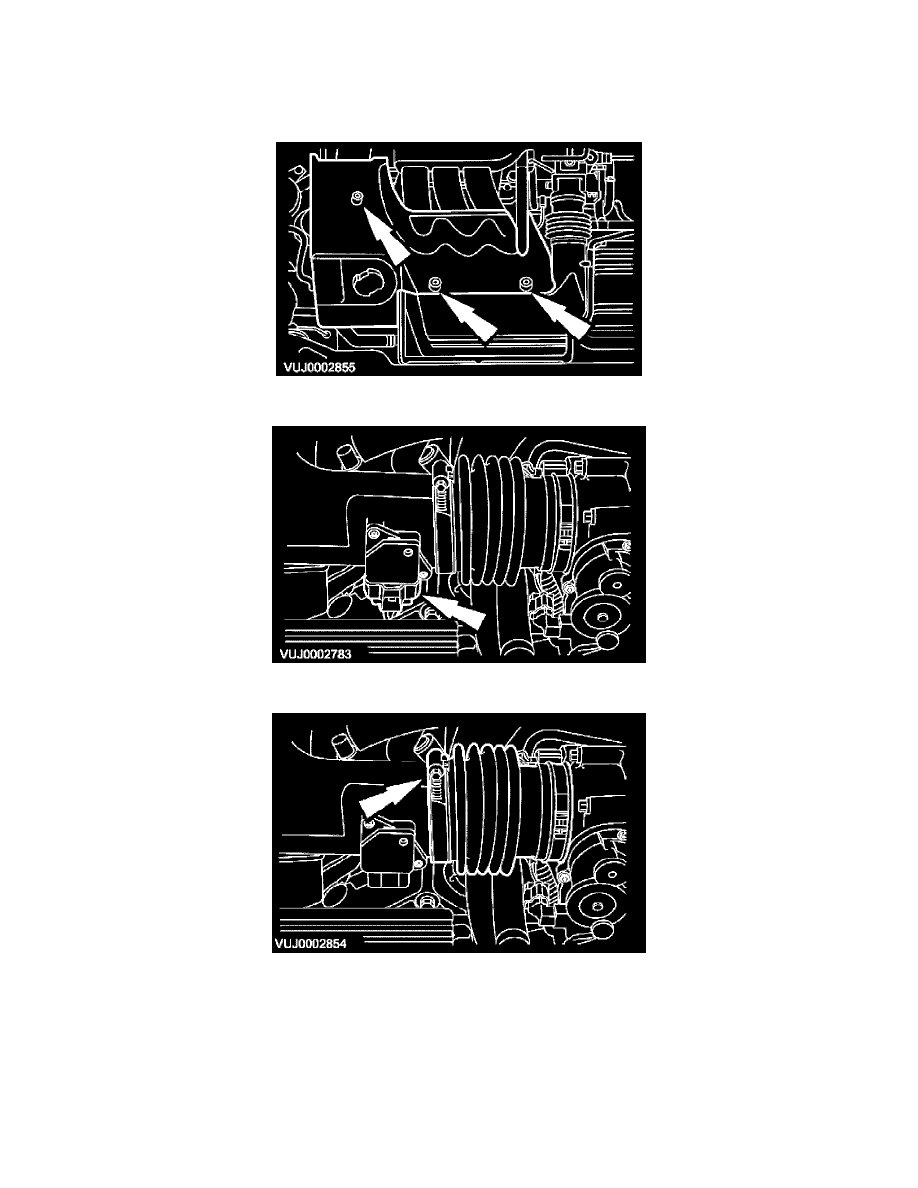

Removal

1. Remove the engine cover.

2. Disconnect the mass airflow sensor electrical connector.

3. Disconnect the air cleaner outlet pipe.
