X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-699001.png)

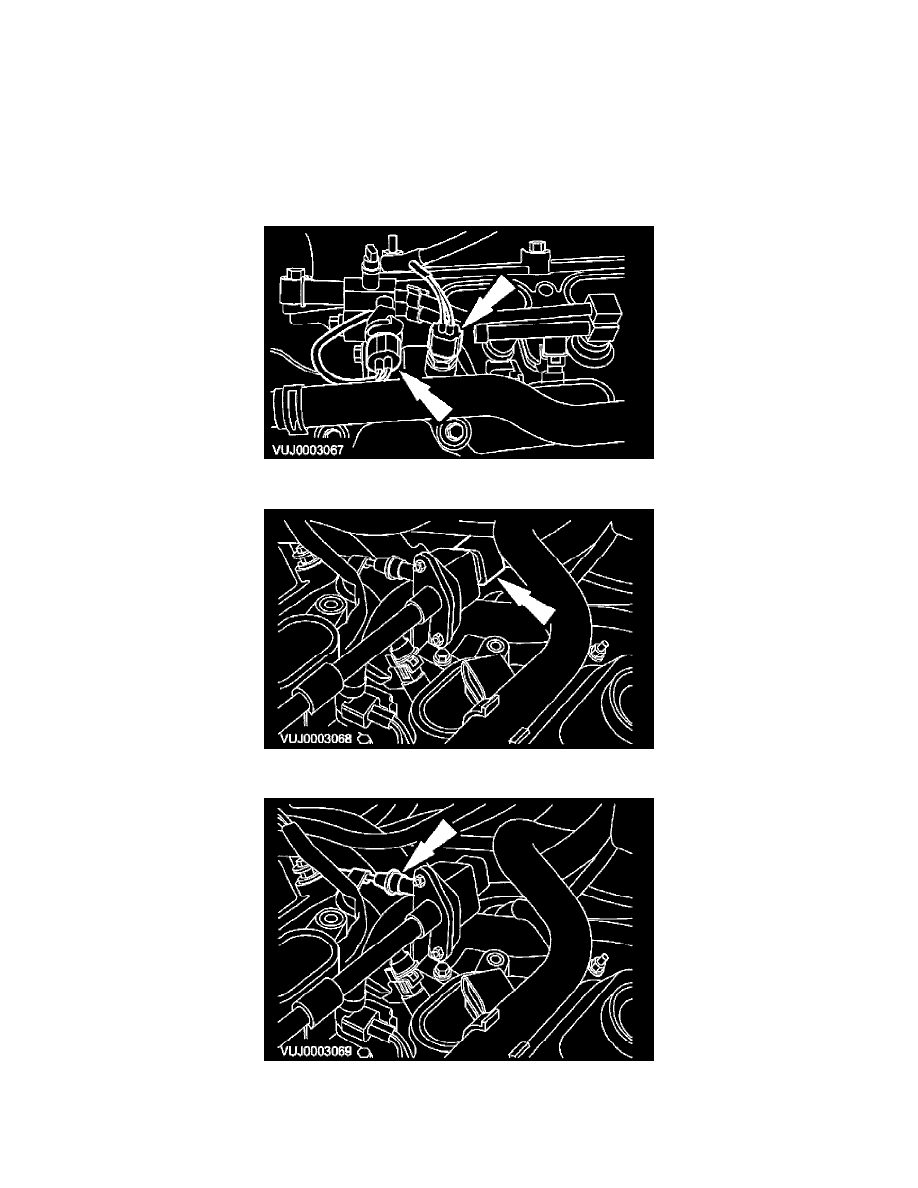

Fuel Injector Wiring Harness: Service and Repair
Fuel Charging Wiring Harness 86.70.22
Removal
Vehicles with 2.5L or 3.0L engine
1. Remove the intake manifold.
2. Disconnect the spring lock coupling.
3. Disconnect the engine coolant temperature (ECT) and fuel temperature sensor electrical connectors.
4. Disconnect the electrical connector.
5. Detach the fuel pressure sensor vacuum line.
