Fuel System - DO NOT CLEAN Electronic Throttle Body|Page 2610 > < Fuel System - DO NOT CLEAN Electronic Throttle Body|Page 2608

X-Type (X400) V6-3.0L (2002)

Page 2
background image

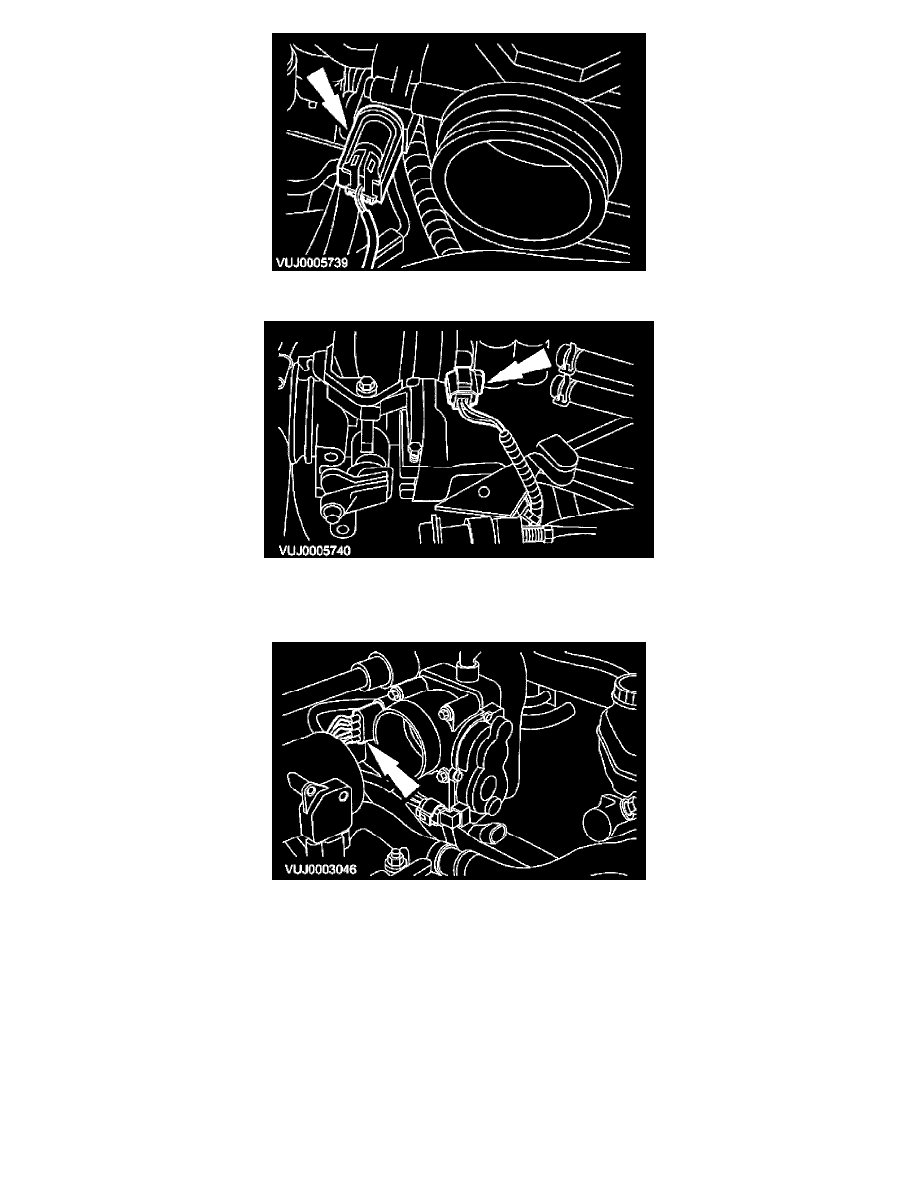

4. Disconnect the electrical connector.

5. Disconnect the electrical connector.

Vehicles with 2.5L or 3.0L engine

6. Disconnect the electrical connector.
