Jaguar Workshop Service and Repair Manuals > X-Type (X400) V6-3.0L (2002) > Relays and Modules | Relays and Modules - Power and Ground Distribution | Relay Box | Component Information | Locations | Page 215

Relays and Modules - Powertrain Management > < Relay and Fuse Location|Page 214

Page 1

background image

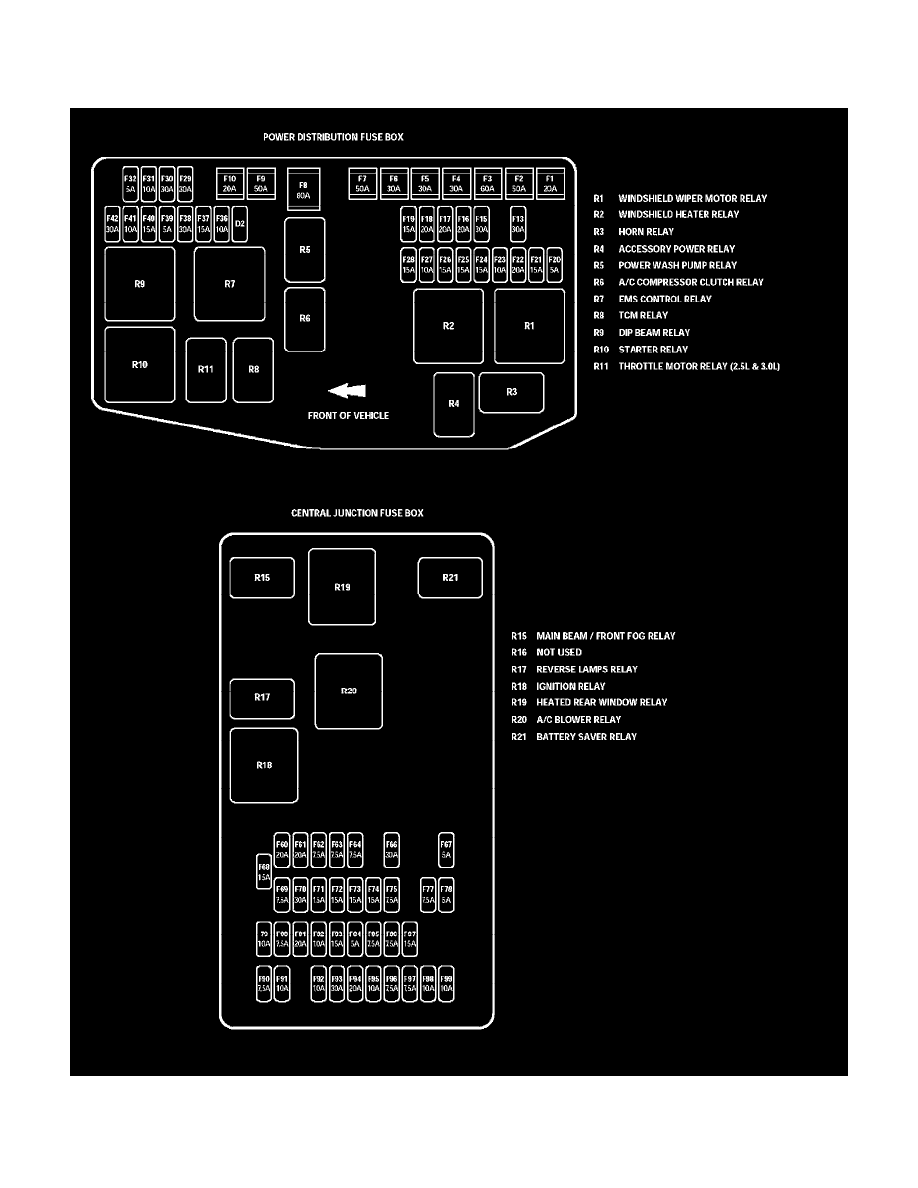

Relay Box: Application and ID

Relay and Fuse Location

Relays and Modules
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 215

Relays and Modules - Powertrain Management > < Relay and Fuse Location|Page 214
