X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1382005.png)

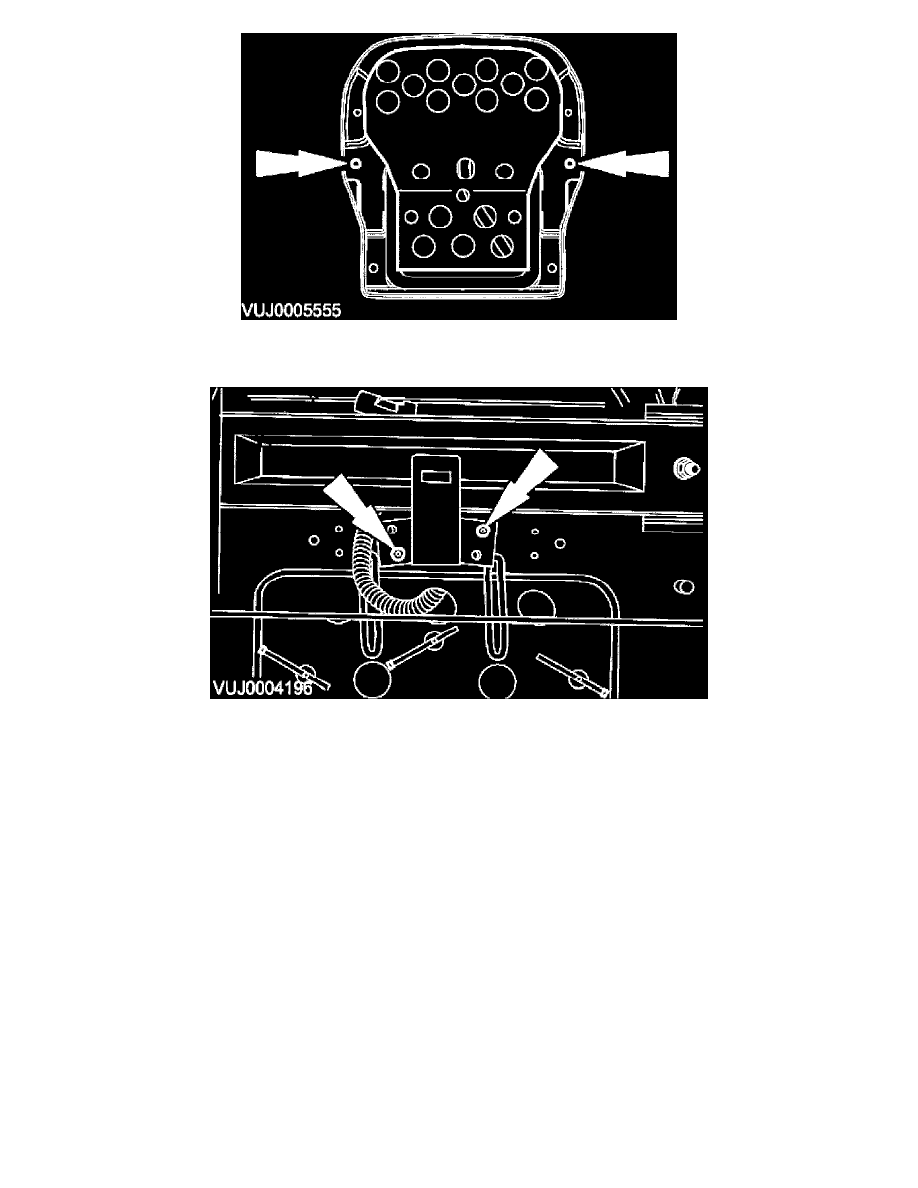

13. Remove the seat cushion bladder from the seat base.
-
Remove the two fir tree clips.
14. CAUTION: Swarf may damage the bladder. Make sure the seat and bladder are free from debris.
Remove the electrical connector bracket.
-
Remove and discard the rivets.
Installation
1. NOTE: Once the seat base is fully assembled, using the cable ties supplied with the kit, fully secure the harness to the seat base.
To install, reverse the removal procedure.
