X-Type (X400) V6-3.0L (2002)

Page 3
background image

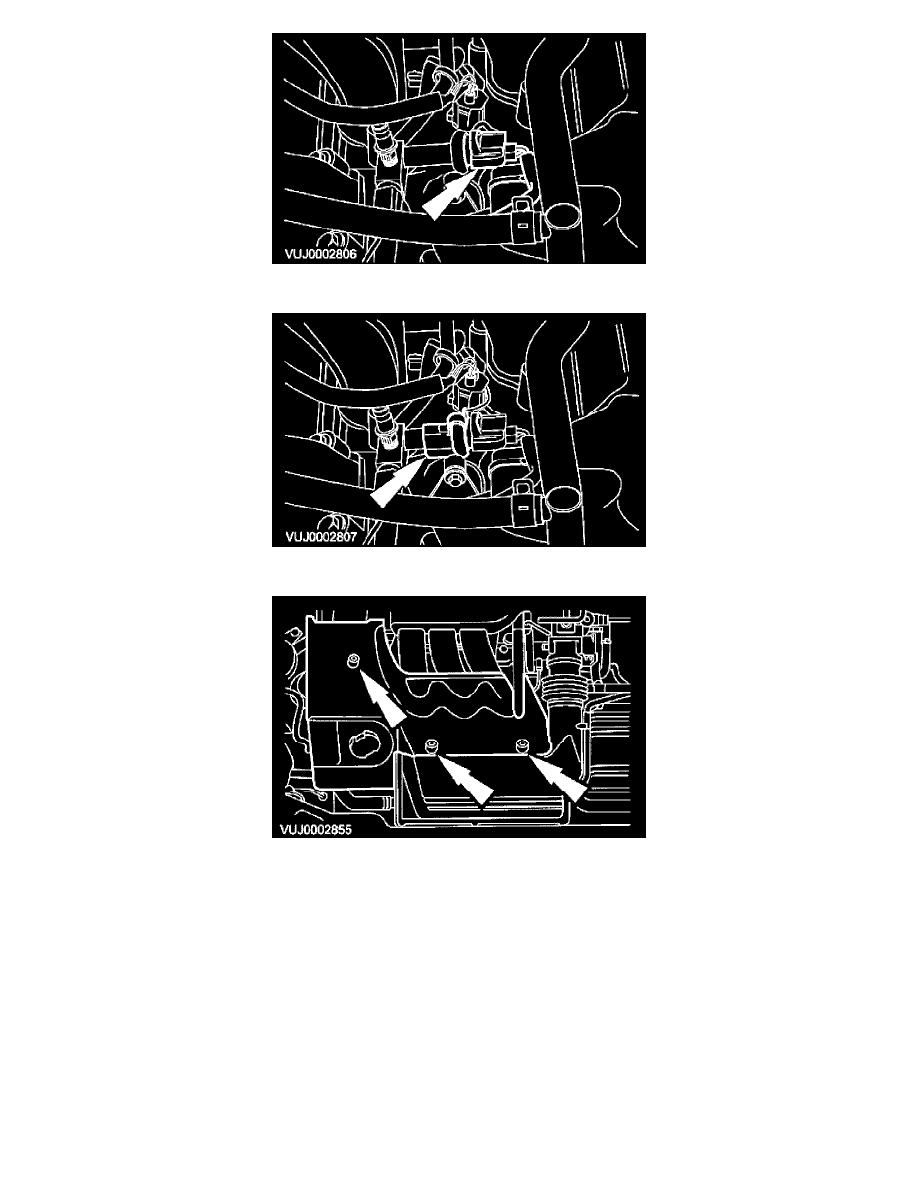

2. Connect the fuel temperature sensor electrical connector.

3. Install the retaining clip to the spring lock coupling.

4. Install the engine cover.
