X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1069001.png)
Alternator: Service and Repair
Removal and Installation
Removal
1. Disconnect the battery ground cable. See: Battery/Service and Repair
2. Remove air conditioning compressor. See: Heating and Air Conditioning/Compressor HVAC/Service and Repair

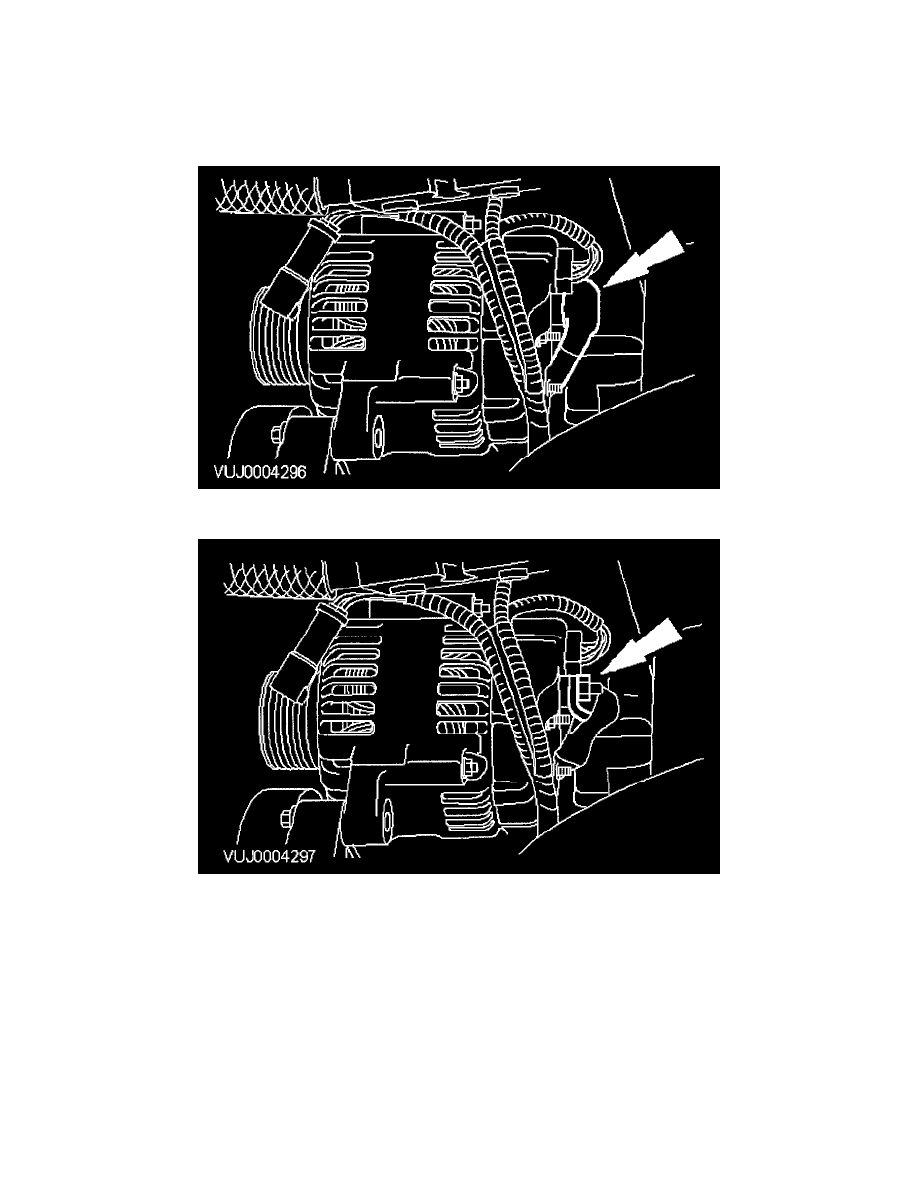

3. Detach the generator battery positive cable protective cover.
4. Disconnect the generator battery positive cable electrical connector.
