X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1188001.png)
Rear Cross-Member Bushing: Service and Repair
Rear Subframe Bushing
Removal
All mounting bushes
1. Remove the rear subframe. See: Subframe/Service and Repair

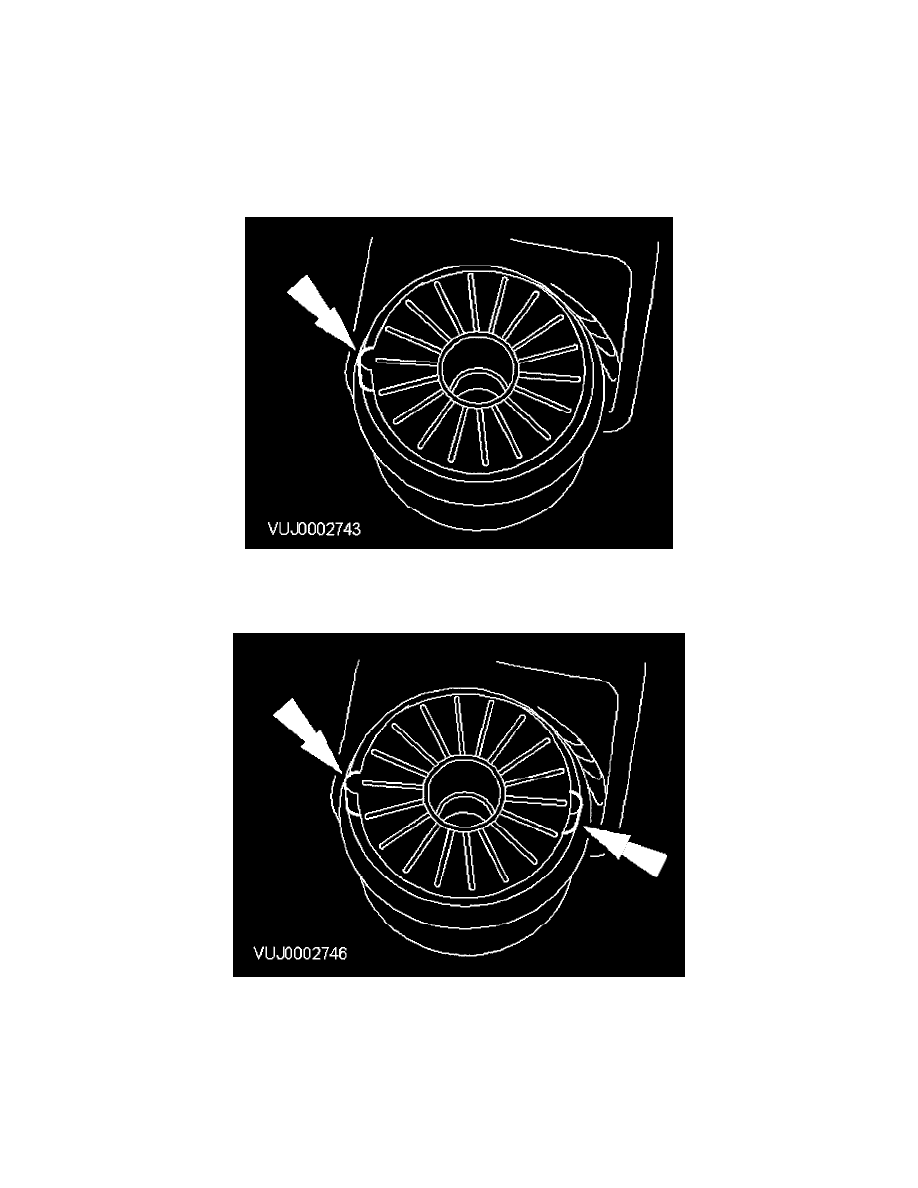

Rear subframe front mounting bush
2. Note the orientation of the mounting bush.
Rear subframe rear mounting bush
3. Note the orientation of the mounting bush.

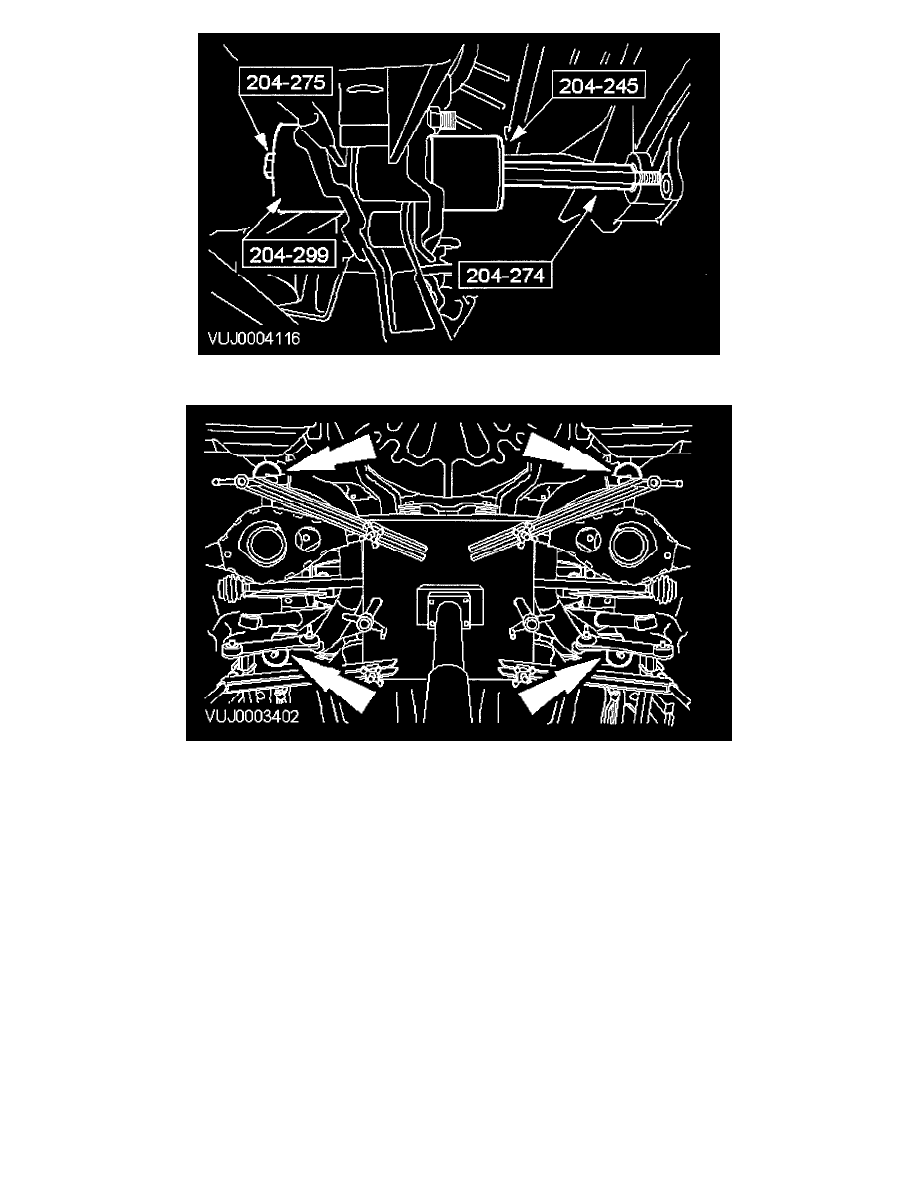

All mounting bushes
