X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1193006.png)

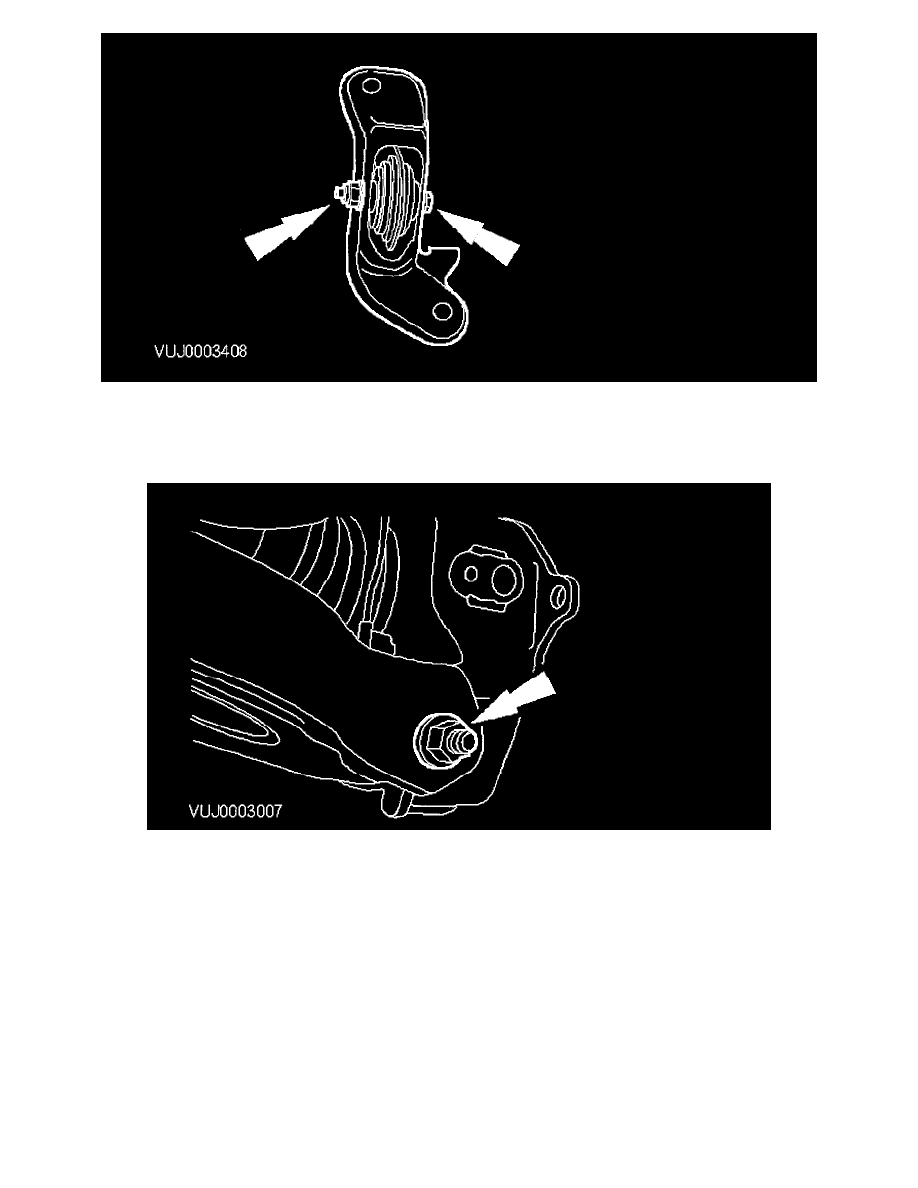

1. Caution: Make sure the mounting bracket is installed in the correct position.
Install the wheel knuckle mounting bracket.
^
Tighten to 130 Nm.
2. Install the wheel knuckle.
