X-Type (X400) V6-3.0L (2002)

Page 2
background image

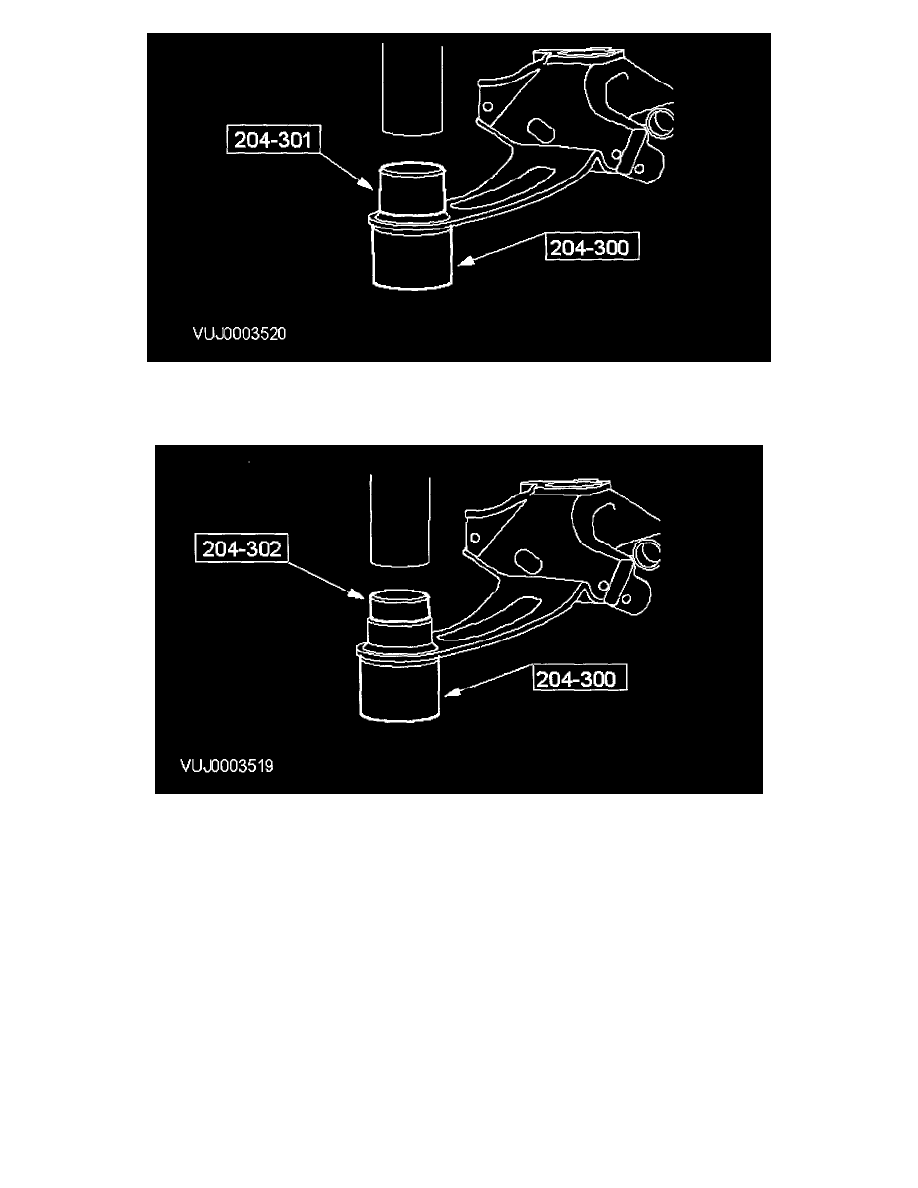

2. Using the special tools, remove the wheel knuckle front bushing.

Installation

1. Using the special tools, install the wheel knuckle front bushing.

2. Install the wheel knuckle.
