X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1204005.png)

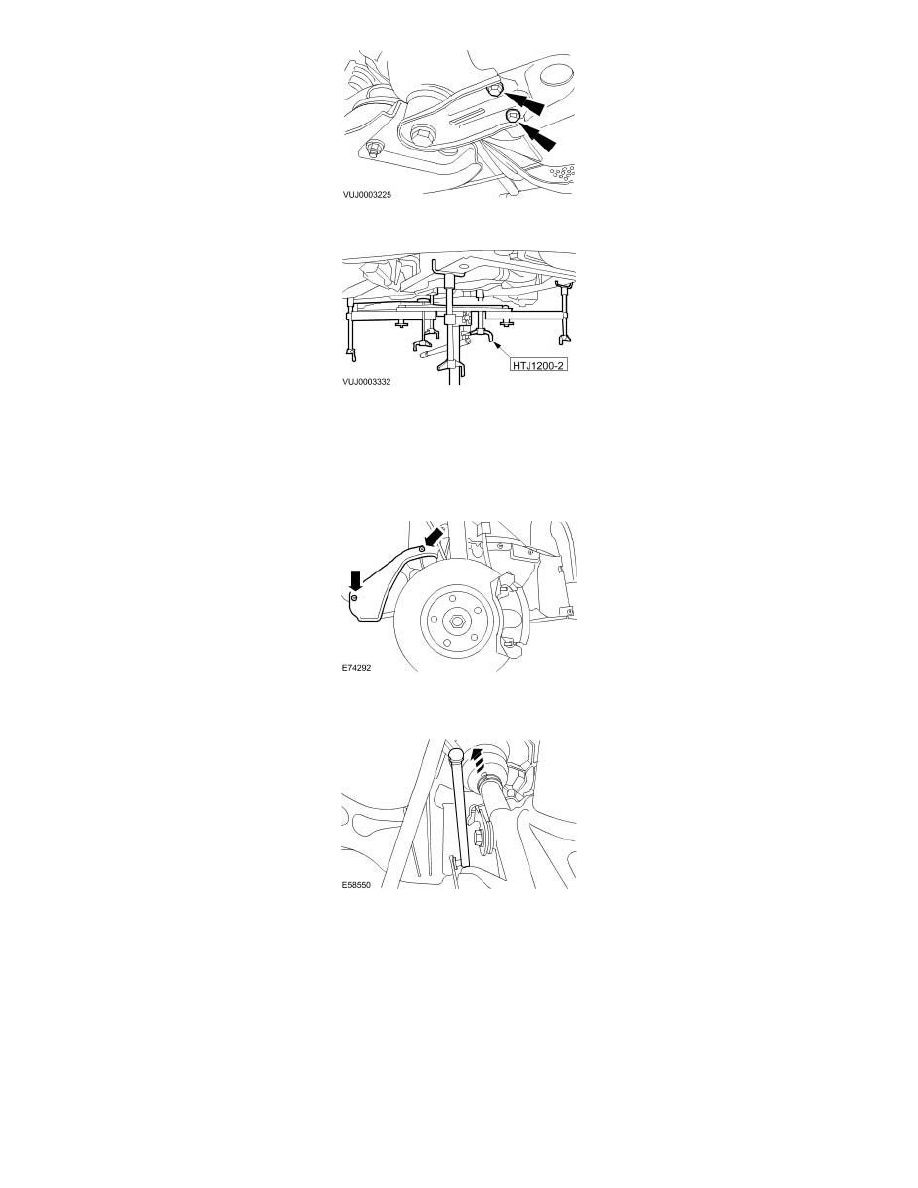

8. Remove the special tool.
Vehicles with diesel engine
9. Install the air deflector.
10. NOTE: Right-hand shown, left-hand similar.
Install the wheel arch liner access panel.
Vehicles with high intensity discharge headlamps
11. Attach the link rod to the headlamp leveling sensor.
All vehicles
12. Install the front wheels and tires. See: Wheels and Tires/Service and Repair
13. NOTE: Install a new retaining bolt.
Attach the steering column.
Install a new steering column lower retaining bolt.
Tighten to 25 Nm.
