X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1214005.png)
19.

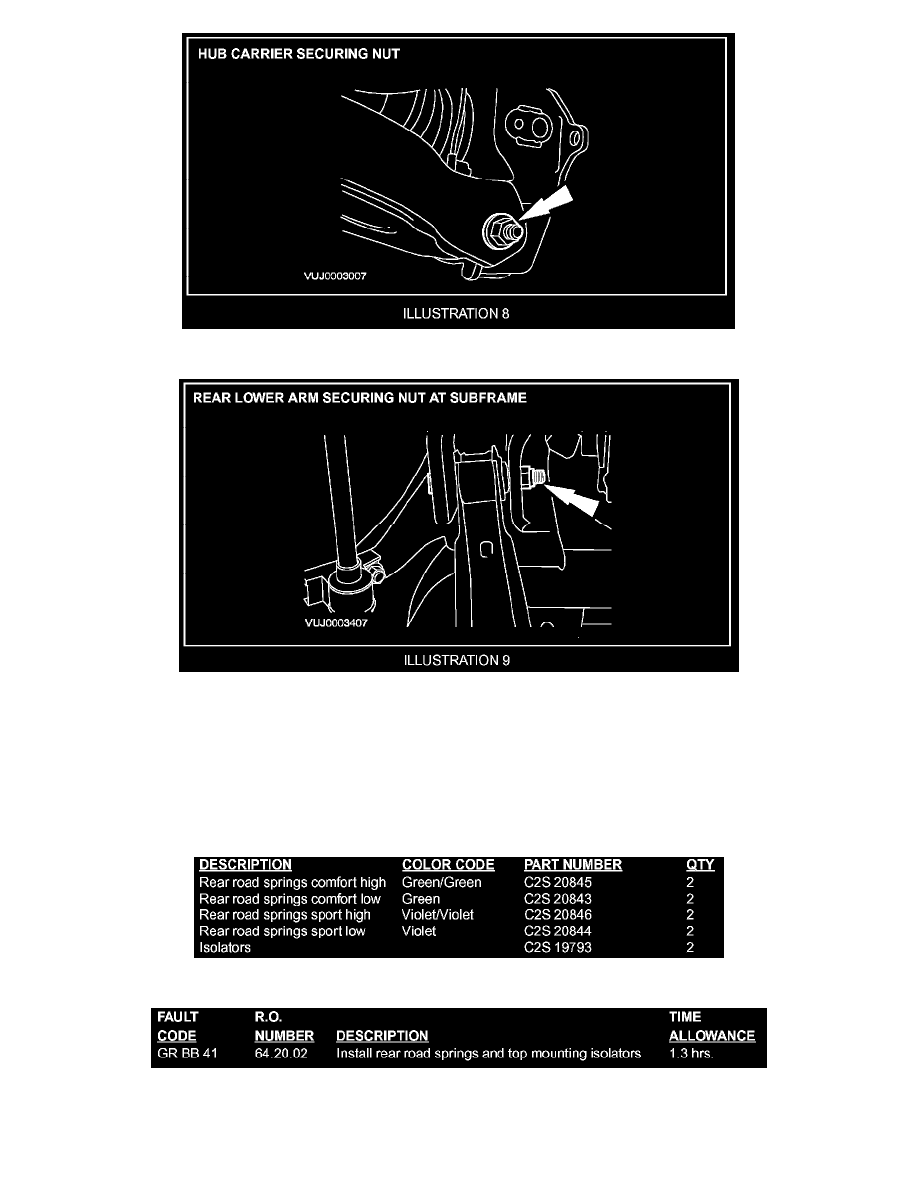

Tighten rear lower arm to hub carrier securing nuts and bolts to 115 Nm (Illustration 8).
20.
Tighten the rear lower arm to subframe securing nuts and bolts to 115 Nm (Illustration 9).
21.
Tighten stabilizer bar link securing nuts to 35 Nm.
22.
Check and adjust four wheel alignment as necessary.
Front toe: -0.10° to -0.30° (toe out)
Rear toe: +0.01° to +0.21° (toe in)
