X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1220010.png)
3. Attach the wheel knuckle.

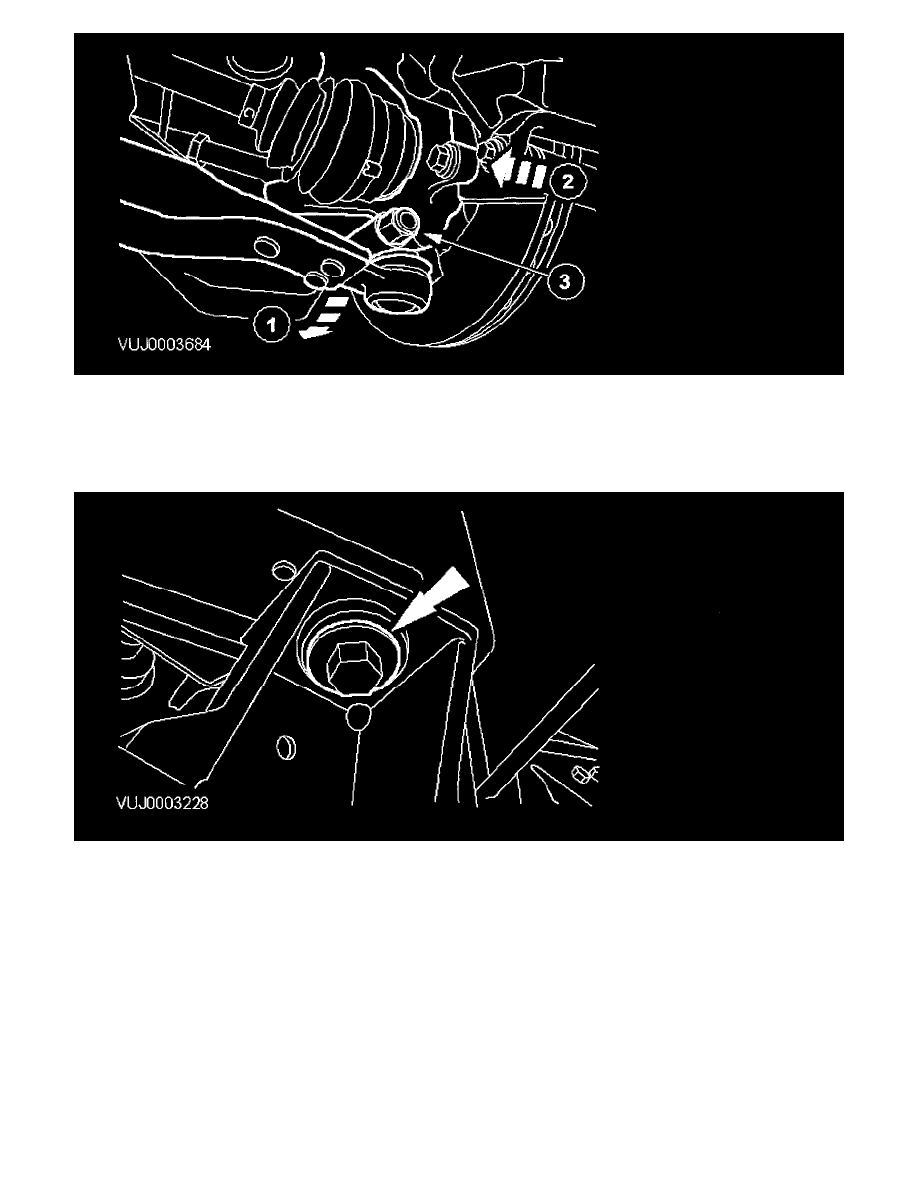

1. Reposition the lower arm.
2. Attach the wheel knuckle.
3. Install the lower arm ball joint retaining nut and bolt.
^
Tighten to 83 Nm.
4. Tighten the front subframe front mount retaining bolt.
^
Tighten to 142 Nm.
